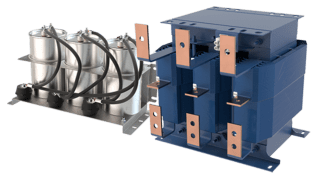

Improve efficiency, improve motor life, and improve your bottom line with the SineWave Guardian®.

• Increases motor life
• Easy to integrate, install and service
• Operates in high ambient temperatures
• High performance and reliability
• Three year warranty



Select filters based on the Full Load Amps (FLA) of the motor.  If the FLA is greater than the current rating of the filter, use the next larger filter.
Note: The motor KW and HP ratings listed below are for reference only.

Amps Rating: 208V-240V, Modular
Amps Rating: 208V-240V, NEMA 1/2
Amps Rating: 208V-240V, NEMA 3R
Amps Rating: 380V-480V, Modular
Amps Rating: 380V-480V, NEMA 1/2
Amps Rating: 380V-480V, NEMA 3R
Amps Rating: 600V, Modular
Amps Rating: 600V, NEMA 1/2
Amps Rating: 600V, NEMA 3R

Amps Rating: 208V-240V, Modular

Select filters based on the Full Load Amps (FLA) of the motor. If the FLA is greater than the current rating of the filter, use the next larger filter. Note: The motor KW and HP ratings listed below are for reference only.

Drawings can be accessed by clicking on the part number

208V Motor HP	240V Motor HP	Filter Amps Rating	Part Number	Weight		Filter Dimensions (H x W x D)		Watts Loss	Capacitor/Capacitor Panel Assembly Dimensions>(H x W x D)
				Lbs	Kgs	Inches	Millimeters		Inches	Millimeters
2	3	9	SWGM0009A	11	5	6.6 x 8.0 x 4.8	168 x 203 x 122	63	7.5 x 3.0	191 x 76
3	4	12	SWGM0012A	14	6	6.7 x 8.0 x 5.1	170 x 203 x 130	75	7.5 x 3.0	191 x 76
5	5.5	17	SWGM0017A	14	6	6.7 x 8.0 x 5.1	170 x 203 x 130	101	7.5 x 3.9	191 x 99
5.5	7.5	22	SWGM0022A	15	7	6.6 x 8.0 x 5.4	168 x 203 x 137	112	8.3 x 3.0	211 x 76
7.5	10	30	SWGM0030A	18	8	7.5 x 9.0 x 4.8	191 x 229 x 122	100	8.3 x 3.0	211 x 76
10 - 12.5	15	45	SWGM0045A	28	13	8.7 x 10.5 x 6.7	221 x 267 x 170	138	8.3 x 4.6	211 x 117
15	20	55	SWGM0055A	32	15	9.0 x 10.5 x 7.4	229 x 267 x 188	162	8.3 x 4.6	211 x 117
20	25	70	SWGM0070A	34	15	9.0 x 10.5 x 7.9	229 x 267 x 201	192	8.3 x 3.0	211 x 76
25	30	85	SWGM0085A	38	17	8.7 x 10.5 x 7.2	221 x 267 x 183	201	8.3 x 3.0	211 x 76
30	40	110	SWGM0110A	53	24	8.7 x 10.5 x 8.9	221 x 267 x 226	226	8.3 x 4.0	211 x 102
40	50	135	SWGM0135A	72	33	11.0 x 12.0 x 9.3	279 x 305 x 236	299	8.3 x 3.0	211 x 76
50	60	160	SWGM0160A	74	34	10.6 x 12.0 x 9.7	269 x 305 x 246	303	8.3 x 4.6	211 x 117
60	75	200	SWGM0200A	120	54	10.9 x 12.0 x 11.4	277 x 305 x 290	387	8.3 x 4.0	211 x 102
75	100	250	SWGM0250A	110	50	10.5 x 12.0 x 11.2	267 x 305 x 284	374	(1) 8.3 x 3.0 (1) 8.3 x 4.6	(1) 211 x 76 (1) 211 x 117
100	125	320	SWGM0320A	153	69	14.2 x 15.3 x 11.8	361 x 389 x 300	637	7.4 x 16.4 x 7.6	188 x 417 x 193

Amps Rating: 208V-240V, NEMA 1/2

Select filters based on the Full Load Amps (FLA) of the motor. If the FLA is greater than the current rating of the filter, use the next larger filter. Note: The motor KW and HP ratings listed below are for reference only.

Drawings can be accessed by clicking on the part number

208V Motor HP	240V Motor HP	Filter Amps Rating	Part Number	Weight		Enclosure	Filter Dimensions (H x W x D)
				Lbs	Kgs		Inches	Millimeters
2	3	9	SWGG0009A	28	13	CAB-13V	13.2 x 13.0 x 13.1	335 x 330 x 333
3	4	12	SWGG0012A	30	14	CAB-13V	13.2 x 13.0 x 13.1	335 x 330 x 333
5	5.5	17	SWGG0017A	30	14	CAB-13V	13.2 x 13.0 x 13.1	335 x 330 x 333
5.5	7.5	22	SWGG0022A	32	15	CAB-13V	13.2 x 13.0 x 13.1	335 x 330 x 333
7.5	10	30	SWGG0030A	34	15	CAB-13V	13.2 x 13.0 x 13.1	335 x 330 x 333
10 - 12.5	15	45	SWGG0045A	78	35	CAB-17V	24.0 x 17.0 x 18.5	610 x 432 x 470
15	20	55	SWGG0055A	80	36	CAB-17V	24.0 x 17.0 x 18.5	610 x 432 x 470
20	25	70	SWGG0070A	82	37	CAB-17V	24.0 x 17.0 x 18.5	610 x 432 x 470
25	30	85	SWGG0085A	86	39	CAB-17V	24.0 x 17.0 x 18.5	610 x 432 x 470
30	40	110	SWGG0110A	101	46	CAB-17V	24.0 x 17.0 x 18.5	610 x 432 x 470
40	50	135	SWGG0135A	148	67	CAB-17AP2	33.9 x 18.3 x 20.9	861 x 465 x 531
50	60	160	SWGG0160A	150	68	CAB-17AP2	33.9 x 18.3 x 20.9	861 x 465 x 531
60	75	200	SWGG0200A	199	90	CAB-17AP2	33.9 x 18.3 x 20.9	861 x 465 x 531
75	100	250	SWGG0250A	189	86	CAB-17AP2	33.9 x 18.3 x 20.9	861 x 465 x 531
100	125	320	SWGG0320A	321	146	CAB-26AP2	51.3 x 27.7 x 24.9	1303 x 704 x 632

Amps Rating: 208V-240V, NEMA 3R

Select filters based on the Full Load Amps (FLA) of the motor. If the FLA is greater than the current rating of the filter, use the next larger filter. Note: The motor KW and HP ratings listed below are for reference only.

Drawings can be accessed by clicking on the part number

208V Motor HP	240V Motor HP	Filter Amps Rating	Part Number	Weight		Enclosure	Filter Dimensions (H x W x D)
				Lbs	Kgs		Inches	Millimeters
2	3	9	SWGW0009A	69	31	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
3	4	12	SWGW0012A	69	31	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
5	5.5	17	SWGW0017A	69	31	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
5.5	7.5	22	SWGW0022A	71	32	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
7.5	10	30	SWGW0030A	73	33	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
10 - 12.5	15	45	SWGW0045A	85	39	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
15	20	55	SWGW0055A	87	40	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
20	25	70	SWGW0070A	90	41	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
25	30	85	SWGW0085A	93	42	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
30	40	110	SWGW0110A	109	49	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
40	50	135	SWGW0135A	159	72	CAB-17AP3	33.9 x 18.3 x 26.0	861 x 465 x 660
50	60	160	SWGW0160A	161	73	CAB-17AP3	33.9 x 18.3 x 26.0	861 x 465 x 660
60	75	200	SWGW0200A	209	95	CAB-17AP3	33.9 x 18.3 x 26.0	861 x 465 x 660
75	100	250	SWGW0250A	199	90	CAB-17AP3	33.9 x 18.3 x 26.0	861 x 465 x 660
100	125	320	SWGW0320A	334	151	CAB-26AP3	51.3 x 27.7 x 30.0	1303 x 704 x 762

Amps Rating: 380V-480V, Modular

Select filters based on the Full Load Amps (FLA) of the motor. If the FLA is greater than the current rating of the filter, use the next larger filter. Note: The motor KW and HP ratings listed below are for reference only.

Drawings can be accessed by clicking on the part number

380V Motor KW	480V Motor HP	Filter Amps Rating	Part Number	Weight		Filter Dimensions (H x W x D)		Watts Loss	Capacitor/Capacitor Panel Assembly Dimensions (H x W x D)
				Lbs	Kgs	Inches	Millimeters		Inches	Millimeters
0.55	0.75	2	SWGM0002D	5	2	4.9 x 4.4 x 2.6	124 x 112 x 66	25	7.5 x 3.0	191 x 76
0.75	1.5	3	SWGM0003D	7	3	4.9 x 4.4 x 3.3	124 x 112 x 84	45	7.5 x 3.0	191 x 76
2.2	3	5	SWGM0005D	11	5	6.6 x 8.0 x 4.8	168 x 203 x 122	75	7.5 x 3.0	191 x 76
3	4	7	SWGM0007D	13	6	6.7 x 8.0 x 5.1	170 x 203 x 130	91	7.5 x 3.0	191 x 76
4	5.5	9	SWGM0009D	14	6	6.7 x 8.0 x 5.1	170 x 203 x 130	97	7.5 x 3.0	191 x 76
5.5	7.5	12	SWGM0012D	15	7	6.7 x 8.0 x 5.4	170 x 203 x 137	127	7.5 x 3.0	191 x 76
7.5	10	17	SWGM0017D	20	9	7.5 x 9.0 x 4.8	191 x 229 x 122	130	7.5 x 3.0	191 x 76
11	15	22	SWGM0022D	32	15	8.7 x 10.5 x 6.7	221 x 267 x 170	135	7.5 x 3.0	191 x 76
-	20	27	SWGM0027D	35	16	8.7 x 10.5 x 6.7	221 x 267 x 170	140	7.5 x 3.0	191 x 76
18.5	25	35	SWGM0035D	39	18	8.9 x 10.5 x 6.7	226 x 267 x 170	210	7.5 x 3.9	191 x 99
22	30	45	SWGM0045D	40	18	8.8 x 10.5 x 7.2	224 x 267 x 183	225	7.5 x 3.9	191 x 99
-	40	55	SWGM0055D	54	24	8.8 x 10.5 x 6.7	224 x 267 x 170	301	8.0 x 3.9	203 x 99
30	50	65	SWGM0065D	59	27	10.7 x 12.0 x 8.6	272 x 305 x 218	310	8.0 x 3.9	203 x 99
37	60	80	SWGM0080D	75	34	10.8 x 12.0 x 9.0	274 x 305 x 229	387	8.3 x 4.6	211 x 117
55	75	110	SWGM0110D	105	48	10.7 x 12.0 x 10.5	272 x 305 x 267	395	8.3 x 4.6	211 x 117
-	100	130	SWGM0130D	108	49	10.7 x 12.0 x 11.5	272 x 305 x 292	420	8.3 x 4.6	211 x 117
75	125	160	SWGM0160D	160	73	14.5 x 15.3 x 11.3	368 x 389 x 287	595	6.7 x 16.4 x 7.6	170 x 417 x 193
110	150	200	SWGM0200D	166	75	14.5 x 15.3 x 14.8	368 x 389 x 376	650	6.7 x 16.4 x 7.6	170 x 417 x 193
132	200	250	SWGM0250D	220	100	14.5 x 15.3 x 13.8	368 x 389 x 351	775	6.9 x 16.3 x 7.6	175 x 414 x 193
160	250	305	SWGM0305D	260	118	14.6 x 15.3 x 14.8	371 x 389 x 376	945	7.4 x 16.4 x 7.6	188 x 417 x 193
200	300	365	SWGM0365D	310	141	14.6 x 15.3 x 15.2	371 x 389 x 386	1,050	8.3 x 16.4 x 7.6	211 x 417 x 193
220	350	415	SWGM0415D	326	148	14.6 x 15.3 x 15.2	371 x 389 x 386	1,137	8.3 x 16.4 x 7.6	211 x 417 x 193
280	450	515	SWGM0515D	355	161	15.0 x 15.3 x 16.2	381 x 389 x 411	1,235	9.9 x 16.4 x 7.6	251 x 417 x 193
335	500	600	SWGM0600D	483	219	18.3 x 24.0 x 14.6	465 x 610 x 371	2,225	9.9 x 16.4 x 7.6	251 x 417 x 193
375	600	720	SWGM0720D	711	323	18.2 x 24.0 x 17.5	462 x 610 x 445	2,300	(1) 8.3 x 16.4 x 7.6 (1) 9.9 x 16.4 x 7.6	(1) 211 x 417 x 193 (1) 251 x 417 x 193
450	700	850	SWGM0850D	835	379	18.2 x 24.0 x 19.0	462 x 610 x 483	2,556	(1) 7.7 x 16.4 x 7.6 (2) 9.9 x 16.4 x 7.6	(1) 196 x 417 x 193 (2) 251 x 417 x 193
560	850	1000	SWGM1000D	942	427	18.1 x 24.0 x 20.6	460 x 610 x 523	2,850	(1) 7.4 x 16.4 x 7.6 (2) 9.9 x 16.4 x 7.6	(1) 188 x 417 x 193 (2) 251 x 417 x 193
675	1000	1200	SWGM1200D	1272	577	25.7 x 24.0 x 20.3	653 x 610 x 516	3,000	(3) 9.9 x 16.4 x 7.6	(3) 251 x 417 x 193
800	1200	1500	SWGM1500D	1296	588	25.9 x 24.0 x 20.0	658 x 610 x 508	3,210	(3) 9.9 x 16.4 x 7.6	(3) 251 x 417 x 193

Amps Rating: 380V-480V, NEMA 1/2

Select filters based on the Full Load Amps (FLA) of the motor. If the FLA is greater than the current rating of the filter, use the next larger filter. Note: The motor KW and HP ratings listed below are for reference only.

Drawings can be accessed by clicking on the part number

380V Motor KW	480V Motor HP	Filter Amps Rating	Part Number	Weight		Enclosure	Filter Dimensions (H x W x D)
				Lbs	Kgs		Inches	Millimeters
0.55	0.75	2	SWGG0002D	19	9	CAB-13V	13.2 x 13.0 x 13.1	335 x 330 x 333
0.75	1.5	3	SWGG0003D	21	10	CAB-13V	13.2 x 13.0 x 13.1	335 x 330 x 333
2.2	3	5	SWGG0005D	25	11	CAB-13V	13.2 x 13.0 x 13.1	335 x 330 x 333
3	4	7	SWGG0007D	27	12	CAB-13V	13.2 x 13.0 x 13.1	335 x 330 x 333
4	5.5	9	SWGG0009D	28	13	CAB-13V	13.2 x 13.0 x 13.1	335 x 330 x 333
5.5	7.5	12	SWGG0012D	29	13	CAB-13V	13.2 x 13.0 x 13.1	335 x 330 x 333
7.5	10	17	SWGG0017D	34	15	CAB-13V	13.2 x 13.0 x 13.1	335 x 330 x 333
11	15	22	SWGG0022D	79	36	CAB-17V	24.0 x 17.0 x 18.5	610 x 432 x 470
-	20	27	SWGG0027D	82	37	CAB-17V	24.0 x 17.0 x 18.5	610 x 432 x 470
18.5	25	35	SWGG0035D	87	39	CAB-17V	24.0 x 17.0 x 18.5	610 x 432 x 470
22	30	45	SWGG0045D	90	41	CAB-17V	24.0 x 17.0 x 18.5	610 x 432 x 470
-	40	55	SWGG0055D	101	46	CAB-17V	24.0 x 17.0 x 18.5	610 x 432 x 470
30	50	65	SWGG0065D	136	62	CAB-17AP2	33.9 x 18.3 x 20.9	861 x 465 x 531
37	60	80	SWGG0080D	150	68	CAB-17AP2	33.9 x 18.3 x 20.9	861 x 465 x 531
55	75	110	SWGG0110D	180	82	CAB-17AP2	33.9 x 18.3 x 20.9	861 x 465 x 531
-	100	130	SWGG0130D	182	83	CAB-17AP2	33.9 x 18.3 x 20.9	861 x 465 x 531
75	125	160	SWGG0160D	327	148	CAB-26AP2	51.3 x 27.7 x 24.9	1303 x 704 x 632
110	150	200	SWGG0200D	336	152	CAB-26AP2	51.3 x 27.7 x 24.9	1303 x 704 x 632
132	200	250	SWGG0250D	381	173	CAB-26AP2	51.3 x 27.7 x 24.9	1303 x 704 x 632
160	250	305	SWGG0305D	430	195	CAB-26AP2	51.3 x 27.7 x 24.9	1303 x 704 x 632
200	300	365	SWGG0365D	480	218	CAB-26AP2	51.3 x 27.7 x 24.9	1303 x 704 x 632
220	350	415	SWGG0415D	496	225	CAB-26AP2	51.3 x 27.7 x 24.9	1303 x 704 x 632
280	450	515	SWGG0515D	764	347	CAB-42AP2	87.6 x 43.7 x 31.1	2225 x 1110 x 790
335	500	600	SWGG0600D	896	406	CAB-42AP2	87.6 x 43.7 x 31.1	2226 x 1110 x 790
375	600	720	SWGG0720D	1127	511	CAB-42AP2	87.6 x 43.7 x 31.1	2227 x 1110 x 790
450	700	850	SWGG0850D	1473	667	CAB-48AP2	84.0 x 52.0 x 36.5	2134 x 1321 x 927
560	850	1000	SWGG1000D	1580	717	CAB-48AP2	84.0 x 52.0 x 36.5	2134 x 1321 x 927
675	1000	1200	SWGG12000D	1921	871	CAB-48AP2	84.0 x 52.0 x 36.5	2134 x 1321 x 927
800	1200	1500	SWGG1500D	1945	882	CAB-48AP2	84.0 x 52.0 x 36.5	2134 x 1321 x 927

Amps Rating: 380V-480V, NEMA 3R

Select filters based on the Full Load Amps (FLA) of the motor. If the FLA is greater than the current rating of the filter, use the next larger filter. Note: The motor KW and HP ratings listed below are for reference only.

Drawings can be accessed by clicking on the part number

380V Motor KW	480V Motor HP	Filter Amps Rating	Part Number	Weight		Enclosure	Filter Dimensions (H x W x D)
				Lbs	Kgs		Inches	Millimeters
0.55	0.75	2	SWGW0002D	62	28	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 584
0.75	1.5	3	SWGW0003D	64	29	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 584
2.2	3	5	SWGW0005D	68	31	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 584
3	4	7	SWGW0007D	61	28	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 584
4	5.5	9	SWGW0009D	54	24	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 584
5.5	7.5	12	SWGW0012D	70	32	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 584
7.5	10	17	SWGW0017D	76	34	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 584
11	15	22	SWGW0022D	87	39	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 584
-	20	27	SWGW0027D	90	41	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 584
18.5	25	35	SWGW0035D	94	43	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 584
22	30	45	SWGW0045D	98	44	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 584
-	40	55	SWGW0055D	109	49	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 584
30	50	65	SWGW0065D	143	65	CAB-17AP3	33.9 x 18.3 x 26.0	861 x 465 x 660
37	60	80	SWGW0080D	157	71	CAB-17AP3	33.9 x 18.3 x 26.0	861 x 465 x 660
55	75	110	SWGW0110D	187	85	CAB-17AP3	33.9 x 18.3 x 26.0	861 x 465 x 660
-	100	130	SWGW0130D	189	86	CAB-17AP3	33.9 x 18.3 x 26.0	861 x 465 x 660
75	125	160	SWGW0160D	340	154	CAB-26AP3	51.3 x 27.7 x 30.0	1303 x 704 x 762
110	150	200	SWGW0200D	349	158	CAB-26AP3	51.3 x 27.7 x 30.0	1303 x 704 x 762
132	200	250	SWGW0250D	395	179	CAB-26AP3	51.3 x 27.7 x 30.0	1303 x 704 x 762
160	250	305	SWGW0305D	443	201	CAB-26AP3	51.3 x 27.7 x 30.0	1303 x 704 x 762
200	300	365	SWGW0365D	493	224	CAB-26AP3	51.3 x 27.7 x 30.0	1303 x 704 x 762
220	350	415	SWGW0415D	509	231	CAB-26AP3	51.3 x 27.7 x 30.0	1303 x 704 x 762
280	450	515	SWGW0515D	800	363	CAB-42AP3	87.6 x 43.7 x 40.1	2225 x 1110 x 1019
335	500	600	SWGW0600D	932	423	CAB-42AP3	87.6 x 43.7 x 40.1	2225 x 1110 x 1019
375	600	720	SWGW0720D	1164	528	CAB-42AP3	87.6 x 43.7 x 40.1	2225 x 1110 x 1019
450	700	850	SWGW0850D	1514	687	CAB-48AP3	84.0 x 52.0 x 45.5	2134 x 1321 x 1156
560	850	1000	SWGW1000D	1621	735	CAB-48AP3	84.0 x 52.0 x 45.5	2134 x 1321 x 1156
675	1000	1200	SWGW1200D	1962	890	CAB-48AP3	84.0 x 52.0 x 45.5	2134 x 1321 x 1156
800	1200	1500	SWGW1500D	1986	901	CAB-48AP3	84.0 x 52.0 x 45.5	2134 x 1321 x 1156

Amps Rating: 600V, Modular

Select filters based on the Full Load Amps (FLA) of the motor. If the FLA is greater than the current rating of the filter, use the next larger filter. Note: The motor KW and HP ratings listed below are for reference only.

Drawings can be accessed by clicking on the part number

600V Motor KW	600V Motor HP	Filter Amps Rating	Part Number	Weight		Filter Dimensions (H x W x D)		Watts Loss	Capacitor/Capacitor Panel Assembly Dimensions>(H x W x D)
				Lbs	Kgs	Inches	Millimeters		Inches	Millimeters
0.75	1	2	SWGM0002E	8	4	4.9 x 4.4 x 3.0	124 x 112 x 76	30	7.9 x 3.0	201 x 76
1.5	2	3	SWGM0003E	11	5	6.7 x 8.0 x 4.8	170 x 203 x 122	51	7.9 x 3.0	201 x 76
3	3	5	SWGM0005E	14	6	6.6 x 8.0 x 5.1	168 x 203 x 130	77	7.9 x 3.0	201 x 76
3.7	5	7	SWGM0007E	15	7	6.7 x 8.0 x 5.4	170 x 203 x 137	97	7.9 x 3.0	201 x 76
5.5	7.5	9	SWGM0009E	17	8	6.7 x 8.0 x 4.3	170 x 203 x 109	124	7.9 x 3.0	201 x 76
7.5	10	12	SWGM0012E	20	9	7.5 x 9.0 x 4.8	191 x 229 x 122	126	7.9 x 3.0	201 x 76
11	15	17	SWGM0017E	26	12	7.5 x 9.0 x 5.3	191 x 229 x 135	133	7.9 x 3.0	201 x 76
15	20	22	SWGM0022E	34	15	8.7 x 10.5 x 6.7	221 x 267 x 170	146	7.9 x 3.0	201 x 76
18.5	25	27	SWGM0027E	40	18	8.7 x 10.5 x 7.7	221 x 267 x 196	156	7.9 x 3.0	201 x 76
22	30	35	SWGM0035E	40	18	8.7 x 10.5 x 7.7	221 x 267 x 196	210	7.9 x 3.0	201 x 76
30	40	45	SWGM0045E	53	24	8.7 x 10.5 x 8.7	221 x 267 x 221	251	7.9 x 3.0	201 x 76
37	50	55	SWGM0055E	63	29	10.7 x 12.0 x 9.4	272 x 305 x 239	293	7.9 x 3.0	201 x 76
45	60	65	SWGM0065E	78	35	10.7 x 12.0 x 9.7	272 x 305 x 246	302	7.9 x 3.0	201 x 76
55	75	80	SWGM0080E	92	42	10.7 x 12.0 x 10.1	272 x 305 x 257	359	7.9 x 3.0	201 x 76
75	100	110	SWGM0110E	106	48	10.7 x 12.0 x 10.5	272 x 305 x 267	449	7.9 x 3.0	201 x 76
90	125	130	SWGM0130E	161	73	14.4 x 15.3 x 11.2	366 x 389 x 284	647	7.9 x 3.0	201 x 76
110	150	160	SWGM0160E	195	88	12.5 x 15.3 x 14.2	318 x 389 x 361	660	7.9 x 3.0	201 x 76
150	200	200	SWGM0200E	245	111	14.6 x 15.3 x 14.7	371 x 389 x 373	765	9.9 x 16.4 x 7.6	251 x 417 x 193
185	250	250	SWGM0250E	282	128	14.6 x 15.3 x 15.7	371 x 389 x 399	939	12.7 x 16.4 x 7.6	323 x 417 x 193
220	300	305	SWGM0305E	333	151	15.1 x 15.3 x 15.6	384 x 389 x 396	1194	(1) 12.7 x 16.4 x 7.6 (1) 8.9 x 16.4 x 7.6	(1) 323 x 417 x 193 (1) 226 x 417 x 193
250	350	365	SWGM0365E	327	148	15.1 x 15.3 x 15.6	384 x 389 x 396	1359	(1) 12.7 x 16.4 x 7.6 (1) 8.9 x 16.4 x 7.6	(1) 323 x 417 x 193 (1) 226 x 417 x 193
335	450	415	SWGM0415E	360	163	14.8 x 15.3 x 16.6	376 x 389 x 422	1599	(1) 12.7 x 16.4 x 7.6 (1) 8.9 x 16.4 x 7.6	(1) 323 x 417 x 193 (1) 226 x 417 x 193
375	500	515	SWGM0515E	507	230	18.2 x 24.0 x 14.5	462 x 610 x 368	1670	(1) 12.7 x 16.4 x 7.6 (1) 9.9 x 16.4 x 7.6	(1) 323 x 417 x 193 (1) 251 x 417 x 193
450	600	600	SWGM0600E	726	329	17.9 x 24.0 x 17.4	455 x 610 x 442	1734	(2) 12.7 x 16.4 x 7.6 (1) 8.9 x 16.4 x 7.6	(2) 323 x 417 x 193 (1) 226 x 417 x 193
525	700	720	SWGM0720E	854	387	18.1 x 24.0 x 18.9	460 x 610 x 480	2250	(2) 12.7 x 16.4 x 7.6 (1) 9.9 x 16.4 x 7.6 (1) 7.9 x 3.0	(2) 323 x 417 x 193 (1) 251 x 417 x 193 (1) 201 x 76
675	900	865	SWGM0865E	895	406	18.3 x 24.0 x 19.1	460 x 610 x 485	2860	(2) 12.7 x 16.4 x 7.6 (2) 9.9 x 16.4 x 7.6	(2) 323 x 417 x 193 (2) 251 x 417 x 193
750	1000	1000	SWGM1000E	877	398	18.1 x 24.0 x 20.0	460 x 610 x 508	3250	(2) 12.7 x 16.4 x 7.6 (2) 9.9 x 16.4 x 7.6	(2) 323 x 417 x 193 (2) 251 x 417 x 193
935	1250	1200	SWGM1200E	1341	608	25.9 x 24.0 x 20.2	658 x 610 x 513	3546	(4) 12.7 x 16.4 x 7.6 (1) 7.9 x 3.0	(4) 323 x 417 x 193 (1) 201 x 76
1100	1500	1500	SWGM1500E	1897	860	33.2 x 36.0 x 29.3	843 x 914 x 744	3762	(5) 12.7 x 16.4 x 7.6 (1) 7.9 x 3.0	(5) 323 x 417 x 193 (1) 201 x 76

Amps Rating: 600V, NEMA 1/2

Select filters based on the Full Load Amps (FLA) of the motor. If the FLA is greater than the current rating of the filter, use the next larger filter. Note: The motor KW and HP ratings listed below are for reference only.

Drawings can be accessed by clicking on the part number

600V Motor KW	600V Motor HP	Filter Amps Rating	Part Number	Weight		Enclosure	Filter Dimensions (H x W x D)
				Lbs	Kgs		Inches	Millimeters
0.75	1	2	SWGG0002E	22	10	CAB-13V	13.2 x 13.0 x 13.1	335 x 330 x 333
1.5	2	3	SWGG000\3E	25	11	CAB-13V	13.2 x 13.0 x 13.1	335 x 330 x 333
3	3	5	SWGG0005E	28	13	CAB-13V	13.2 x 13.0 x 13.1	335 x 330 x 333
3.7	5	7	SWGG0007E	29	13	CAB-13V	13.2 x 13.0 x 13.1	335 x 330 x 333
5.5	7.5	9	SWGG0009E	32	15	CAB-13V	13.2 x 13.0 x 13.1	335 x 330 x 333
7.5	10	12	SWGG0012E	35	16	CAB-13V	13.2 x 13.0 x 13.1	335 x 330 x 333
11	15	17	SWGG0017E	40	18	CAB-13V	13.2 x 13.0 x 13.1	335 x 330 x 333
15	20	22	SWGG0022E	82	37	CAB-17V	24.0 x 17.0 x 18.5	610 x 432 x 470
18.5	25	27	SWGG0027E	88	40	CAB-17V	24.0 x 17.0 x 18.5	610 x 432 x 470
22	30	35	SWGG0035E	88	40	CAB-17V	24.0 x 17.0 x 18.5	610 x 432 x 470
30	40	45	SWGG0045E	101	46	CAB-17V	24.0 x 17.0 x 18.5	610 x 432 x 470
37	50	55	SWGG0055E	138	63	CAB-17AP2	33.9 x 18.3 x 20.9	861 x 465 x 531
45	60	65	SWGG0065E	152	69	CAB-17AP2	33.9 x 18.3 x 20.9	861 x 465 x 531
55	75	80	SWGG0080E	166	75	CAB-17AP2	33.9 x 18.3 x 20.9	861 x 465 x 531
75	100	110	SWGG0110E	181	82	CAB-17AP2	33.9 x 18.3 x 20.9	861 x 465 x 531
90	125	130	SWGG0130E	332	151	CAB-26AP2	51.3 x 27.7 x 24.9	1303 x 704 x 632
110	150	160	SWGG0160E	367	166	CAB-26AP2	51.3 x 27.7 x 24.9	1303 x 704 x 632
150	200	200	SWGG0200E	414	188	CAB-26AP2	51.3 x 27.7 x 24.9	1303 x 704 x 632
185	250	250	SWGG0250E	699	317	CAB-42AP2	87.6 x 43.7 x 31.1	2225 x 1110 x 790
220	300	305	SWGG0305E	758	344	CAB-42AP2	87.6 x 43.7 x 31.1	2225 x 1110 x 790
250	350	365	SWGG0365E	752	341	CAB-42AP2	87.6 x 43.7 x 31.1	2225 x 1110 x 790
335	450	415	SWGG0415E	785	356	CAB-42AP2	87.6 x 43.7 x 31.1	2225 x 1110 x 790
375	500	515	SWGG0515E	917	416	CAB-42AP2	87.6 x 43.7 x 31.1	2225 x 1110 x 790
450	600	600	SWGG0600E	1142	518	CAB-42AP2	87.6 x 43.7 x 31.1	2225 x 1110 x 790
525	700	720	SWGG07205E	1470	667	CAB-48AP2	84.0 x 52.0 x 36.5	2134 x 1321 x 927
675	900	865	SWGG0865E	1512	686	CAB-48AP2	84.0 x 52.0 x 36.5	2134 x 1321 x 927
750	1000	1000	SWGG1000E	1495	678	CAB-48AP2	84.0 x 52.0 x 36.5	2134 x 1321 x 927
935	1250	1200	SWGG1200E	1977	897	CAB-48AP2	84.0 x 52.0 x 36.5	2134 x 1321 x 927

Amps Rating: 600V, NEMA 3R

Select filters based on the Full Load Amps (FLA) of the motor. If the FLA is greater than the current rating of the filter, use the next larger filter. Note: The motor KW and HP ratings listed below are for reference only.

Drawings can be accessed by clicking on the part number

600V Motor KW	600V Motor HP	Filter Amps Rating	Part Number	Weight		Enclosure	Filter Dimensions (H x W x D)
				Lbs	Kgs		Inches	Millimeters
0.75	1	2	SWGW0002E	65	29	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
1.5	2	3	SWGW0003E	68	31	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
3	3	5	SWGW0005E	69	31	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
3.7	5	7	SWGW0007E	70	32	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
5.5	7.5	9	SWGW0009E	72	33	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
7.5	10	12	SWGW0012E	75	34	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
11	15	17	SWGW0017E	81	37	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
15	20	22	SWGW0022E	89	40	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
18.5	25	27	SWGW0027E	95	43	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
22	30	35	SWGW0035E	95	43	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
30	40	45	SWGW0045E	109	49	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
37	50	55	SWGW0055E	148	67	CAB-17AP3	33.9 x 18.3 x 26.0	861 x 465 x 660
45	60	65	SWGW0065E	163	74	CAB-17AP3	33.9 x 18.3 x 26.0	861 x 465 x 660
55	75	80	SWGW0080E	177	80	CAB-17AP3	33.9 x 18.3 x 26.0	861 x 465 x 660
75	100	110	SWGW0110E	191	87	CAB-17AP3	33.9 x 18.3 x 26.0	861 x 465 x 660
90	125	130	SWGW0130E	345	156	CAB-26AP3	51.3 x 27.7 x 30.0	1303 x 704 x 762
110	150	160	SWGW0160E	379	172	CAB-26AP3	51.3 x 27.7 x 30.0	1303 x 704 x 762
150	200	200	SWGW0200E	427	194	CAB-26AP3	51.3 x 27.7 x 30.0	1303 x 704 x 762
185	250	250	SWGW0250E	744	337	CAB-42AP3	87.6 x 43.7 x 40.1	2225 x 1110 x 1019
220	300	305	SWGW0305E	803	364	CAB-42AP3	87.6 x 43.7 x 40.1	2225 x 1110 x 1019
250	350	365	SWGW0365E	797	362	CAB-42AP3	87.6 x 43.7 x 40.1	2225 x 1110 x 1019
335	450	415	SWGW0415E	830	376	CAB-42AP3	87.6 x 43.7 x 40.1	2225 x 1110 x 1019
375	500	515	SWGW0515E	962	436	CAB-42AP3	87.6 x 43.7 x 40.1	2225 x 1110 x 1019
450	600	600	SWGW0600E	1187	538	CAB-42AP3	87.6 x 43.7 x 40.1	2225 x 1110 x 1019
525	700	720	SWGW0720E	1510	685	CAB-48AP3	84.0 x 52.0 x 45.5	2134 x 1321 x 1156
675	900	865	SWGW0865E	1553	704	CAB-48AP3	84.0 x 52.0 x 45.5	2134 x 1321 x 1156
750	1000	1000	SWGW1000E	1536	697	CAB-48AP3	84.0 x 52.0 x 45.5	2134 x 1321 x 1156
935	1250	1200	SWGW1200E	2018	915	CAB-48AP3	84.0 x 52.0 x 45.5	2134 x 1321 x 1156
