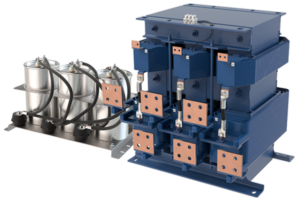

Matrix® AP Passive Harmonic Filter



Related Links:

Product Brochure
Performance Guarantee
Solutions Catalog
Solution Profiles
Application Profiles
Filter Specs
Installation Guide
Technical Manual

The Key to the Success of Our Harmonic Filter: adapt.

Simply put, our Matrix® AP three-phase filter is the most advanced passive filter on the market today. Most traditional filters work fine at 100% power load, but severely underperform at lower loads. Matrix AP is different, because we know almost no one runs at full load all the time. Its patented Adaptive Passive Technology virtually eliminates harmonic distortion by adapting to varying power loads. It delivers better THID performance, increases energy efficiency, and allows you to meet IEEE-519 requirements. Its unique design generates less heat, and is easy to install and maintain. Plus it is generator compatible. With Matrix AP Harmonic Filters, power quality, energy efficiency and reduced downtime are easy to achieve.

Improve three-phase power quality and reduce downtime with our patented Adaptive Passive Technology.

• • Adapts to varying power loads
  • Best performance in the industry
  • Extends the service life of electrical equipment
  • Generator compatible
  • Performance guarantee



Selection Tables

Amps Rating: 208V-240V Open Panel
Amps Rating: 208V-240V NEMA 1 / 2 & NEMA 3R
Amps Rating: 380V-415V Open Panel
Amps Rating: 380-415V NEMA 1 / 2 & NEMA 3R
Amps Rating: 480V Open Panel
Amps Rating: 480V NEMA 1 / 2 & NEMA 3R
Amps Rating: 600V Open Panel
Amps Rating: 600V NEMA 1 / 2 & NEMA 3R
Amps Rating: 690V Open Panel

Amps Rating: 208V-240V, 60Hz Open Panel

Drawings can be accessed by clicking on the part number

Motor HP	Filter Amps Rating	Part Number	Weight		Filter Dimensions (H x W x D)		Watts Loss	Capacitor/Capacitor Panel Assembly Dimensions>(H x W x D)
			Lbs	Kgs	Inches	Millimeters		Inches	Millimeters
1.5	6	MAPP0006A	19	9	8.5 x 8.0 x 5.4	216 x 203 x 137	95	7.5 x 3.0	191 x 76
2	8	MAPP0008A	19	9	8.5 x 8.0 x 5.4	216 x 203 x 137	102	7.5 x 3.0	191 x 76
3	11	MAPP0011A	22	10	8.6 x 8.0 x 5.4	218 x 203 x 137	122	7.5 x 4.6	191 x 117
5	14	MAPP0014A	21	10	8.6 x 8.0 x 5.4	218 x 203 x 137	180	7.5 x 3.9	191 x 99
5	21	MAPP0021A	30	14	9.8 X 8.0 X 4.8	249 x 203 x 122	187	9.1 x 4.6	231 x 117
7.5	27	MAPP0027A	36	16	9.7 x 9.0 x 5.3	246 x 229 x 135	191	9.1 x 4.6	231 x 117
10	34	MAPP0034A	51	23	11.7 x 10.5 x 6.7	297 x 267 x 170	217	10.6 x 4.6	269 x 117
15	44	MAPP0044A	52	24	11.6 x 10.5 x 7.2	295 x 267 x 183	269	9.0 x 4.6	229 x 117
20	52	MAPP0052A	56	25	11.7 x 10.5 x 7.2	297 x 267 x 183	287	9.0 x 3.5	229 x 89
25	66	MAPP0066A	64	29	11.6 x 10.5 x 7.7	295 x 267 x 196	334	9.0 x 3.9	229 x 99
30	83	MAPP0083A	77	35	11.6 x 10.5 x 9.1	295 x 267 x 231	373	9.0 x 3.9	229 x 99
40	103	MAPP0103A	111	50	14.0 x 12.0 x 9.6	356 x 305 x 244	475	(2) 10.6 x 4.6	269 x 117
50	128	MAPP0128A	134	61	14.0 x 12.0 x 10.8	356 x 305 x 274	558	(2) 10.6 x 4.6	269 x 117
60	165	MAPP0165A	157	71	13.9 x 12.0 x 12.3	353 x 305 x 312	601	10.6 x 4.6 9.0 x 4.6	269 x 117 229 x 117
75	208	MAPP0208A	174	79	14.0 x 12.0 x 13.4	356 x 305 x 340	681	(2) 9.0 x 4.6	229 x 117
100	240	MAPP0240 A	225	102	19.9 x 15.3 x 11.9	505 x 389 x 302	1093	6.7 x 7.6 x 16.4	170 x 193 x 417
125	320	MAPP0320A	263	119	19.9 x 15.3 x 12.8	505 x 389 x 325	1305	6.7 x 7.6 x 16.4	170 x 193 x 417
150	403	MAPP0403A	280	127	20.0 x 15.3 x 12.8	508 x 389 x 325	1636	8.3 x 7.6 x 16.4	211 x 193 x 417

Amps Rating: 208V-240V, 60Hz NEMA 1/2 & NEMA 3R

Drawings can be accessed by clicking on the part number

Motor HP	Filter Amps Rating	NEMA 1/2 Part Number	Weight		Enclosure	Filter Dimensions (H x W x D)		NEMA 3R Part Number	Weight		Enclosure	Filter Dimensions (H x W x D)
			Lbs	Kgs		Inches	Millimeters		Lbs	Kgs		Inches	Millimeters
1.5	6	MAPG0006A	65	29	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0006A	73	33	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
2	8	MAPG0008A	65	29	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0008A	73	33	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
3	11	MAPG0011A	69	31	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0011A	77	35	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
5	14	MAPG0014A	68	31	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0014A	76	34	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
5	21	MAPG0021A	77	35	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0021A	85	39	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
7.5	27	MAPG0027A	84	38	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0027A	92	42	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
10	34	MAPG0034A	98	44	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0034A	105	48	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
15	44	MAPG0044A	100	45	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0044A	108	49	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
20	52	MAPG0052A	105	48	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0052A	109	49	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
25	66	MAPG0066A	112	51	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0066A	120	54	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
30	83	MAPG0080A	124	56	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0080A	132	60	CAB-12AP3	24.0 x 12.5 x 22.9	610 x 318 x 582
40	103	MAPG0103A	185	84	CAB-17AP2	33.9 x 18.3 x 20.9	861 x 465 x 531	MAPW0103A	195	88	CAB-17AP3	33.9 x 18.3 x 26.0	861 x 465 x 660
50	128	MAPG0128A	207	94	CAB-17AP2	33.9 x 18.3 x 20.9	861 x 465 x 531	MAPW0128A	218	99	CAB-17AP3	33.9 x 18.3 x 26.0	861 x 465 x 660
60	165	MAPG0165A	232	105	CAB-17AP2	33.9 x 18.3 x 20.9	861 x 465 x 531	MAPW0165A	243	110	CAB-17AP3	33.9 x 18.3 x 26.0	861 x 465 x 660
75	208	MAPG0208A	249	113	CAB-17AP2	33.9 x 18.3 x 20.9	861 x 465 x 531	MAPW0208A	259	117	CAB-17AP3	33.9 x 18.3 x 26.0	861 x 465 x 660
100	240	MAPG0240A	396	180	CAB-26AP2	51.3 x 27.7 x 24.9	1303 x 704 x 632	MAPW0240A	407	185	CAB-26AP3	51.3 x 27.7 x 30.0	1303 x 704 x 762
125	320	MAPG0320A	432	196	CAB-26AP2	51.3 x 27.7 x 24.9	1303 x 704 x 632	MAPW0320A	445	202	CAB-26AP3	51.3 x 27.7 x 30.0	1303 x 704 x 762
150	403	MAPG0403A	448	203	CAB-26AP2	51.3 x 27.7 x 24.9	1303 x 704 x 632	MAPW0403A	461	209	CAB-26AP3	51.3 x 27.7 x 30.0	1303 x 704 x 762

Amps Rating: 380V-415V, 50Hz Open Panel

Drawings can be accessed by clicking on the part number

Motor KW	Filter Amps Rating	Part Number	Weight		Filter Dimensions (H x W x D)		Watts Loss	Capacitor/Capacitor Panel Assembly Dimensions (H x W x D)
			Lbs	Kgs	Inches	Millimeters		Inches	Millimeters
1.1-2.2	6	MAPP0006C	20	9	8.6 x 8.0 x 5.4	218 x 203 x 137	114	7.5 x 3.0	191 x 76
-	8	MAPP0008C	20	9	8.7 x 8.0 x 5.4	221 x 203 x 137	149	7.5 x 3.0	191 x 76
3.7	11	MAPP0011C	28	13	9.9 x 9.0 x 4.8	251 x 229 x 122	180	7.5 x 3.0	191 x 76
5.5	14	MAPP0014C	34	15	9.8 x 9.0 x 5.3	249 x 229 x 135	206	8.0 x 3.9	203 x 99
7.5	21	MAPP0021C	50	23	11.7 x 10.5 x 6.7	297 x 267 x 170	235	8.0 x 3.9	203 x 99
11	27	MAPP0027C	56	25	11.8 x 10.5 x 7.2	300 x 267 x 183	266	8.3 x 4.6	211 x 117
15	34	MAPP0034C	68	31	11.7 x 10.5 x 7.7	297 x 267 x 196	298	9.2 x 4.6	234 x 117
18.5-22	44	MAPP0044C	79	36	11.7 x 10.5 x 8.2	297 x 267 x 208	356	9.2 x 4.6	234 x 117
-	52	MAPP0052C	100	45	14.0 x 12.0 x 9.0	356 x 305 x 229	388	9.2 x 4.6	234 x 117
30	66	MAPP0066C	112	51	14.0 x 12.0 x 9.0	356 x 305 x 229	459	10.6 x 4.6	269 x 117
37-45	83	MAPP0083C	139	63	14.0 x 12.0 x 10.9	356 x 305 x 277	565	10.6 x 4.6	269 x 117
55	103	MAPP0103C	147	67	14.1 x 12.0 x 11.0	358 x 305 x 279	660	10.6 x 4.6	269 x 117
-	128	MAPP0128C	218	99	20.0 x 15.3 x 10.7	508 x 389 x 272	973	11.1 x 16.4 x 7.6	282 x 417 x 193
75-90	165	MAPP0165C	273	124	20.0 x 15.3 x 11.7	508 x 389 x 297	1,030	6.7 x 16.4 x 7.6	170 x 417 x 193
110	208	MAPP0208C	290	132	20.1 x 15.3 x 11.8	511 x 389 x 300	1,263	8.0 x 16.4 x 7.6	203 x 417 x 193
-	240	MAPP0240C	325	147	19.9 x 15.3 x 12.8	505 x 389 x 325	1,423	8.0 x 16.4 x 7.6	203 x 417 x 193
150	320	MAPP0320C	421	191	20.0 x 15.3 x 17.8	508 x 389 x 452	1,450	9.9 x 16.4 x 7.6	251 x 417 x 193
185-220	403	MAPP0403C	433	196	23.2 x 15.3 x 13.7	589 x 389 x 348	1,816	11.1 x 16.4 x 7.6	282 x 417 x 193
-	482	MAPP0482C	543	246	23.3 x 15.3 x 14.8	592 x 389 x 376	2,008	8.0 x 16.4 x 7.6	203 x 417 x 193
280	636	MAPP0636C	683	310	25.8 x 24.0 x 16.5	655 x 610 x 419	2,359	(2) 9.9 x 16.4 x 7.6	(2) 251 x 417 x 193
375	786	MAPP0786C	777	352	25.7 x 24.0 x 17.9	653 x 610 x 455	2,604	(2) 11.1 x 16.4 x 7.6	(2) 282 x 417 x 193
450	850	MAPP0850C	981	445	25.9 x 24.0 x 20.3	658 x 610 x 516	2,974	8.0 x 16.4 x 7.6 (2) 9.9 x 16.4 x 7.6	203 x 417 x 193 (2) 251 x 417 x 193
525	1000	MAPP1000C	973	441	25.9 x 24.0 x 21.2	658 x 610 x 538	3,954	(3) 9.9 x 16.4 x 7.6	(3) 251 x 417 x 193
600	1200	MAPP1200C	989	449	26.0 x 24.0 x 22.2	660 x 610 x 564	4,136	(3) 11.1 x 16.4 x 7.6	(3) 282 x 417 x 193

Amps Rating: 380V-415V, 50Hz NEMA 1 / 2 & NEMA 3R

Drawings can be accessed by clicking on the part number

Motor KW	Filter Amps Rating	NEMA 1/2 Part Number	Weight		Enclosure	Filter Dimensions (H x W x D)		NEMA 3R Part Number	Weight		Enclosure	Filter Dimensions (H x W x D)
			Lbs	Kgs		Inches	Millimeters		Lbs	Kgs		Inches	Millimeters
1.1-2.2	6	MAPG0006C	66	30	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0006C	74	34	CAB-12AP3	24.0 x 12.5 x 23.0	310 x 318 x 584
-	8	MAPG0008C	68	31	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0008C	75	34	CAB-12AP3	24.0 x 12.5 x 23.0	310 x 318 x 584
3.7	11	MAPG0011C	75	34	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0011C	83	38	CAB-12AP3	24.0 x 12.5 x 23.0	310 x 318 x 584
5.5	14	MAPG0014C	82	37	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0014C	90	41	CAB-12AP3	24.0 x 12.5 x 23.0	310 x 318 x 584
7.5	21	MAPG0021C	98	44	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0021C	107	49	CAB-12AP3	24.0 x 12.5 x 23.0	310 x 318 x 584
11	27	MAPG0027C	103	47	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0027C	111	50	CAB-12AP3	24.0 x 12.5 x 23.0	310 x 318 x 584
15	34	MAPG0034C	115	52	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0034C	123	56	CAB-12AP3	24.0 x 12.5 x 23.0	310 x 318 x 584
18.5-22	44	MAPG0044C	127	58	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0044C	134	61	CAB-12AP3	24.0 x 12.5 x 23.0	310 x 318 x 584
-	52	MAPG0052C	174	79	CAB-17AP2	33.9 x 18.3 x 20.9	861 x 465 x 531	MAPW0052C	181	82	CAB-17AP3	33.9 x 18.3 x 26.0	861 x 465 x 660
30	66	MAPG0066C	186	84	CAB-17AP2	33.9 x 18.3 x 20.9	861 x 465 x 531	MAPW0066C	194	88	CAB-17AP3	33.9 x 18.3 x 26.0	861 x 465 x 660
37-45	83	MAPG0083C	212	96	CAB-17AP2	33.9 x 18.3 x 20.9	861 x 465 x 531	MAPW0083C	219	99	CAB-17AP3	33.9 x 18.3 x 26.0	861 x 465 x 660
55	103	MAPG0103C	221	100	CAB-17AP2	33.9 x 18.3 x 20.9	861 x 465 x 531	MAPW0103C	228	103	CAB-17AP3	33.9 x 18.3 x 26.0	861 x 465 x 660
-	128	MAPG0128C	390	177	CAB-26AP2	51.3 x 27.7 x 24.9	1303 x 704 x 632	MAPW0128C	396	180	CAB-26AP3	51.3 x 27.7 x 30.0	1303 x 704 x 762
75-90	165	MAPG0165C	442	200	CAB-26AP2	51.3 x 27.7 x 24.9	1303 x 704 x 632	MAPW0165C	455	206	CAB-26AP3	51.3 x 27.7 x 30.0	1303 x 704 x 762
110	208	MAPG0208C	459	208	CAB-26AP2	51.3 x 27.7 x 24.9	1303 x 704 x 632	MAPW0208C	472	214	CAB-26AP3	51.3 x 27.7 x 30.0	1303 x 704 x 762
-	240	MAPG0240C	494	224	CAB-26AP2	51.3 x 27.7 x 24.9	1303 x 704 x 632	MAPW0240C	507	230	CAB-26AP3	51.3 x 27.7 x 30.0	1303 x 704 x 762
150	320	MAPG0320C	658	298	CAB-26APD2	76.0 x 27.7 x 24.9	1930 x 704 x 632	MAPW0320C	683	310	CAB-26APD3	76.0 x 27.7 x 34.0	1930 x 704 x 864
185-200	403	MAPG0403C	660	288	CAB-26APD2	76.0 x 27.7 x 24.9	1930 x 704 x 632	MAPW0403C	667	303	CAB-26APD3	76.0 x 27.7 x 34.0	1930 x 704 x 864
-	482	MAPG0482C	955	433	CAB-42AP2	87.6 x 43.7 x 31.1	2225 x 1110 x 790	MAPW0482C	1,000	454	CAB-42AP3	87.6 x 43.7 x 40.1	2225 x 1110 x 790
280	636	MAPG0636C	1,094	496	CAB-42AP2	87.6 x 43.7 x 31.1	2225 x 1110 x 790	MAPW0636C	1,131	513	CAB-42AP3	87.6 x 43.7 x 40.1	2225 x 1110 x 790
375	786	MAPG0786C	1,183	537	CAB-42AP2	87.6 x 43.7 x 31.1	2225 x 1110 x 790	MAPW0786C	1,228	557	CAB-42AP3	87.6 x 43.7 x 40.1	2225 x 1110 x 790
450	850	MAPG0850C	1,604	728	CAB-48AP2	84.0 x 52.0 x 36.5	2134 x 1321 x 927	MAPW0850C	1,644	746	CAB-48AP3	84.0 x 52.0 x 45.5	2134 x 1321 x 1156
525	1000	MAPG1000C	1,579	716	CAB-48AP2	84.0 x 52.0 x 36.5	2134 x 1321 x 927	MAPW1000C	1,620	735	CAB-48AP3	84.0 x 52.0 x 45.5	2134 x 1321 x 1156
600	1200	MAPG1200C	1,575	714	CAB-48AP2	84.0 x 52.0 x 36.5	2134 x 1321 x 927	MAPW1200C	1,616	733	CAB-48AP3	84.0 x 52.0 x 45.5	2134 x 1321 x 1156

Amps Rating: 480V, 60Hz Open Panel

Drawings can be accessed by clicking on the part number

Motor HP	Filter Amps Rating	Part Number	Weight		Filter Dimensions (H x W x D)		Watts Loss	Capacitor/Capacitor Panel Assembly Dimensions (H x W x D)
			Lbs	Kgs	Inches	Millimeters		Inches	Millimeters
3	6	MAPP0006D	20	9	8.7 x 8.0 x 5.4	221 x 203 x 137	122	7.5 x 3.0	191 x 76
5	8	MAPP0008D	20	9	8.7 x 8.0 x 5.4	221 x 203 x 137	158	7.5 x 3.0	191 x 76
7.5	11	MAPP0011D	28	13	9.9 x 9.0 x 4.8	251 x 229 x 122	192	7.5 x 3.0	191 x 76
10	14	MAPP0014D	33	15	9.8 x 9.0 x 5.3	249 x 229 x 135	220	7.5 x 3.0	191 x 76
15	21	MAPP0021D	50	23	11.7 x 10.5 x 6.6	297 x 267 x 168	251	8.0 x 3.9	203 x 99
20	27	MAPP0027D	56	25	11.8 x 10.5 x 7.2	300 x 267 x 183	283	8.0 x 3.9	203 x 99
25	34	MAPP0034D	67	30	11.7 x 10.5 x 7.7	297 x 267 x 196	318	8.0 x 3.9	203 x 99
30	44	MAPP0044D	78	35	11.7 x 10.5 x 8.2	297 x 267 x 208	379	8.3 x 4.6	211 x 117
40	52	MAPP0052D	99	45	14.0 x 12.0 x 9.1	356 x 305 x 231	413	9.2 x 4.6	234 x 117
50	66	MAPP0066D	111	50	14.0 x 12.0 x 9.0	356 x 305 x 229	488	9.2 x 4.6	234 x 117
60	83	MAPP0083D	139	63	14.0 x 12.0 x 10.9	356 x 305 x 277	600	10.6 x 4.6	269 x 117
75	103	MAPP0103D	151	68	14.1 x 12.0 x 11.0	358 x 305 x 279	702	10.6 x 4.6	269 x 117
100	128	MAPP0128D	205	93	20.0 x 15.3 x 10.7	508 x 389 x 272	1,035	6.7 x 16.4 x 7.6	170 x 417 x 193
125	165	MAPP0165D	233	106	20.0 x 15.3 x 11.7	508 x 389 x 297	1,096	6.7 x 16.4 x 7.6	170 x 417 x 193
150	208	MAPP0208D	287	130	20.1 x 15.3 x 11.8	511 x 389 x 300	1,343	6.7 x 16.4 x 7.6	170 x 417 x 193
200	240	MAPP0240D	323	147	20.0 x 15.3 x 12.7	508 x 389 x 323	1,514	6.7 x 16.4 x 7.6	170 x 417 x 193
250	320	MAPP0320D	416	189	20.0 x 15.3 x 14.8	508 x 389 x 376	1,543	8.0 x 16.4 x 7.6	203 x 417 x 193
300	403	MAPP0403D	419	190	23.3 x 15.3 x 13.7	592 x 389 x 348	1,932	9.9 x 16.4 x 7.6	251 x 417 x 193
400	482	MAPP0482D	532	241	23.3 x 15.3 x 14.8	592 x 389 x 376	2,137	(2) 6.7 x 16.4 x 7.6	(2) 170 x 417 x 193
500	636	MAPP0636D	667	303	25.8 x 24.0 x 16.5	655 x 610 x 419	2,509	(2) 8.0 x 16.4 x 7.6	(2) 203 x 417 x 193
600	786	MAPP0786D	776	352	25.7 x 24.0 x 17.9	653 x 610 x 455	2,771	(2) 9.9 x 16.4 x 7.6	(2) 251 x 417 x 193
700	850	MAPP0850D	967	439	25.9 x 24.0 x 20.3	658 x 610 x 516	3,163	6.7 x 16.4 x 7.6 (2) 8.0 x 16.4 x 7.6	170 x 417 x 193 (2) 203 x 417 x 193
900	1000	MAPP1000D	946	429	25.9 x 24.0 x 21.2	658 x 610 x 538	4,206	(2) 8.0 x 16.4 x 7.6 9.9 x 16.4 x 7.6	(2) 203 x 417 x 193 251 x 417 x 193
1000	1200	MAPP1200D	990	449	26.0 x 24.0 x 22.2	660 x 610 x 564	4,400	(3) 9.9 x 16.4 x 7.6	(3) 251 x 417 x 193
1300	1600	MAPP1600D	2,272	1031	33.4 x 36.0 x 29.3	848 x 914 x 744	4,500	(4) 9.9 x 16.4 x 7.6	(4) 251 x 417 x 193
1500	2000	MAPP2000D	2,678	1215	33.6 x 36.0 x 31.3	853 x 914 x 795	5,050	(5) 9.9 x 16.4 x 7.6	(5) 251 x 417 x 193
1850	2300	MAPP2300D	2,893	1312	33.4 x 36.0 x 32.4	848 x 914 x 823	6,100	(6) 9.9 x 16.4 x 7.6	(6) 251 x 417 x 193

Amps Rating: 480V, 60Hz NEMA 1 / 2 & NEMA 3R

Drawings can be accessed by clicking on the part number

Motor HP	Filter Amps Rating	NEMA 1/2 Part Number	Weight		Enclosure	Filter Dimensions (H x W x D)		NEMA 3R Part Number	Weight		Enclosure	Filter Dimensions (H x W x D)
			Lbs	Kgs		Inches	Millimeters		Lbs	Kgs		Inches	Millimeters
3	6	MAPG0006D	66	30	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0006D	74	34	CAB-12AP3	24.0 x 12.5 x 23.0	610 x 318 x 584
5	8	MAPG0008D	68	31	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0008D	75	34	CAB-12AP3	24.0 x 12.5 x 23.0	610 x 318 x 584
7.5	11	MAPG0011D	75	34	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0011D	83	38	CAB-12AP3	24.0 x 12.5 x 23.0	610 x 318 x 584
10	14	MAPG0014D	80	36	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0014D	88	40	CAB-12AP3	24.0 x 12.5 x 23.0	610 x 318 x 584
15	21	MAPG0021D	98	44	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0021D	107	49	CAB-12AP3	24.0 x 12.5 x 23.0	610 x 318 x 584
20	27	MAPG0027D	104	47	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0027D	112	51	CAB-12AP3	24.0 x 12.5 x 23.0	610 x 318 x 584
25	34	MAPG0034D	113	51	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0034D	122	55	CAB-12AP3	24.0 x 12.5 x 23.0	610 x 318 x 584
30	44	MAPG0044D	128	58	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0044D	133	60	CAB-12AP3	24.0 x 12.5 x 23.0	610 x 318 x 584
40	52	MAPG0052D	173	78	CAB-17AP2	33.9 x 18.3 x 20.9	861 x 465 x 531	MAPW0052D	181	82	CAB-17AP3	33.9 x 18.3 x 26.0	861 x 465 x 660
50	66	MAPG0066D	185	84	CAB-17AP2	33.9 x 18.3 x 20.9	861 x 465 x 531	MAPW0066D	193	88	CAB-17AP3	33.9 x 18.3 x 26.0	861 x 465 x 660
60	83	MAPG0083D	209	95	CAB-17AP2	33.9 x 18.3 x 20.9	861 x 465 x 531	MAPW0083D	217	98	CAB-17AP3	33.9 x 18.3 x 26.0	861 x 465 x 660
75	103	MAPG0103D	226	103	CAB-17AP2	33.9 x 18.3 x 20.9	861 x 465 x 531	MAPW0103D	237	108	CAB-17AP3	33.9 x 18.3 x 26.0	861 x 465 x 660
100	128	MAPG0128D	370	168	CAB-26AP2	51.3 x 27.7 x 24.9	1303 x 704 x 632	MAPW0128D	383	174	CAB-26AP3	51.3 x 27.7 x 30.0	1303 x 704 x 762
125	165	MAPG0165D	435	197	CAB-26AP2	51.3 x 27.7 x 24.9	1303 x 704 x 632	MAPW0165D	448	203	CAB-26AP3	51.3 x 27.7 x 30.0	1303 x 704 x 762
150	208	MAPG0208D	452	205	CAB-26AP2	51.3 x 27.7 x 24.9	1303 x 704 x 632	MAPW0208D	464	210	CAB-26AP3	51.3 x 27.7 x 30.0	1303 x 704 x 762
200	240	MAPG0240D	488	221	CAB-26AP2	51.3 x 27.7 x 24.9	1303 x 704 x 632	MAPW0240D	501	227	CAB-26AP3	51.3 x 27.7 x 30.0	1303 x 704 x 762
250	320	MAPG0320D	654	297	CAB-26APD2	76.0 x 27.7 x 24.9	1930 x 704 x 632	MAPW0320D	679	308	CAB-26APD3	76.0 x 27.7 x 34.0	1930 x 704 x 864
300	403	MAPG0403D	649	294	CAB-26APD2	76.0 x 27.7 x 24.9	1930 x 704 x 632	MAPW0403D	678	308	CAB-26APD3	76.0 x 27.7 x 34.0	1930 x 704 x 864
400	482	MAPG0482D	944	428	CAB-42AP2	87.6 x 43.7 x 31.1	2225 x 1110 x 790	MAPW0482D	981	445	CAB-42AP3	87.6 x 43.7 x 40.1	2225 x 1110 x 1019
500	636	MAPG0636D	1,085	492	CAB-42AP2	87.6 x 43.7 x 31.1	2225 x 1110 x 790	MAPW0636D	1,122	509	CAB-42AP3	87.6 x 43.7 x 40.1	2225 x 1110 x 1019
600	786	MAPG0786D	1,183	537	CAB-42AP2	87.6 x 43.7 x 31.1	2225 x 1110 x 790	MAPW0786D	1,228	557	CAB-42AP3	87.6 x 43.7 x 40.1	2225 x 1110 x 1019
700	850	MAPG0850D	1,590	721	CAB-48AP2	84.0 x 52.0 x 36.5	2134 x 1321 x 927	MAPW0850D	1,630	739	CAB-48AP3	84.0 x 52.0 x 45.5	2134 x 1321 x 1156
900	1000	MAPG1000D	1,566	710	CAB-48AP2	84.0 x 52.0 x 36.5	2134 x 1321 x 927	MAPW1000D	1,607	729	CAB-48AP3	84.0 x 52.0 x 45.5	2134 x 1321 x 1156
1000	1200	MAPG1200D	1,595	723	CAB-48AP2	84.0 x 52.0 x 36.5	2134 x 1321 x 927	MAPW1200D	1,634	741	CAB-48AP3	84.0 x 52.0 x 45.5	2134 x 1321 x 1156

Amps Rating: 600V, 60Hz Open Panel

Drawings can be accessed by clicking on the part number

Motor HP	Filter Amps Rating	Part Number	Weight		Filter Dimensions (H x W x D)		Watts Loss	Capacitor/Capacitor Panel Assembly Dimensions (H x W x D)
			Lbs	Kgs	Inches	Millimeters		Inches	Millimeters
5	6	MAPP0006E	18	8	8.7 x 8.0 x 5.4	221 x 203 x 137	150	7.5 x 3.0	191 x 76
5	8	MAPP0008E	28	13	9.8 x 9.0 x 4.8	249 x 229 x 122	183	7.5 x 3.0	191 x 76
10	11	MAPP0011E	32	15	9.8 x 9.0 x 5.3	249 x 229 x 135	205	7.5 x 3.0	191 x 76
10	14	MAPP0014E	47	21	11.7 x 10.5 x 6.7	297 x 267 x 170	250	9.2 x 4.6	234 x 117
15	21	MAPP0021E	58	26	11.7 x 10.5 x 7.2	297 x 267 x 183	285	7.5 x 3.9	191 x 99
25	27	MAPP0027E	68	31	11.7 x 10.5 x 7.7	297 x 267 x 196	304	8.3 x 4.6	211 x 117
30	34	MAPP0034E	89	40	11.7 x 10.5 x 8.2	297 x 267 x 208	366	8.3 x 4.6	211 x 117
40	44	MAPP0044E	118	54	14.0 x 12.0 x 9.9	356 x 305 x 251	395	9.2 x 4.6	234 x 117
50	52	MAPP0052E	142	64	14.1 x 12.0 x 10.3	358 x 305 x 262	494	9.2 x 4.6	234 x 117
60	66	MAPP0066E	166	75	14.0 x 12.0 x 11.0	356 x 305 x 279	655	10.6 x 4.6	269 x 117
75	83	MAPP0083E	144	65	14.1 x 12.0 x 10.9	358 x 305 x 277	718	10.6 x 4.6	269 x 117
100	103	MAPP0103E	210	95	20.0 x 15.3 x 10.7	508 x 389 x 272	1,085	6.7 x 16.4 x 7.6	170 x 417 x 193
125	128	MAPP0128E	270	122	20.0 x 15.3 x 11.7	508 x 389 x 297	1,090	6.7 x 16.4 x 7.6	170 x 417 x 193
150	165	MAPP0165E	287	130	20.1 x 15.3 x 11.9	511 x 389 x 302	1,285	6.7 x 16.4 x 7.6	170 x 417 x 193
200	208	MAPP0208E	322	146	20.1 x 15.3 x 12.8	511 x 389 x 325	1,431	7.7 x 16.4 x 7.6	196 x 417 x 193
250	240	MAPP0240E	427	194	19.9 x 15.3 x 15.8	505 x 389 x 401	1,624	7.7 x 16.4 x 7.6	196 x 417 x 193
300	320	MAPP0320E	501	227	23.2 x 15.3 x 15.7	589 x 389 x 399	2,021	9.2 x 16.4 x 7.6	234 x 417 x 193
400	403	MAPP0403E	504	229	23.3 x 15.3 x 15.8	592 x 389 x 401	2,208	12.1 x 16.4 x 7.6	307 x 417 x 193
500	482	MAPP0482E	670	304	25.9 x 24.0 x 16.6	658 x 610 x 422	2,481	(2) 7.7 x 16.4 x 7.6	(2) 196 x 417 x 193
600	636	MAPP0636E	754	342	25.9 x 24.0 x 17.7	658 x 610 x 450	2,884	(2) 9.2 x 16.4 x 7.6	(2) 234 x 417 x 193
800	786	MAPP0786E	927	420	26.0 x 24.0 x 19.5	660 x 610 x 495	3,368	(2) 12.1 x 16.4 x 7.6	(2) 307 x 417 x 193

Amps Rating: 600V, 60Hz NEMA 1 / 2 & NEMA 3R

Drawings can be accessed by clicking on the part number

Motor HP	Filter Amps Rating	NEMA 1/2 Part Number	Weight		Enclosure	Filter Dimensions (H x W x D)		NEMA 3R Part Number	Weight		Enclosure	Filter Dimensions (H x W x D)
			Lbs	Kgs		Inches	Millimeters		Lbs	Kgs		Inches	Millimeters
5	6	MAPG0006E	67	30	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0006E	75	34	CAB-12AP3	24.0 x 12.5 x 23.0	610 x 318 x 584
5	8	MAPG0008E	75	34	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0008E	83	38	CAB-12AP3	24.0 x 12.5 x 23.0	610 x 318 x 584
10	11	MAPG0011E	79	36	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0011E	87	39	CAB-12AP3	24.0 x 12.5 x 23.0	610 x 318 x 584
10	14	MAPG0014E	94	43	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0014E	102	46	CAB-12AP3	24.0 x 12.5 x 23.0	610 x 318 x 584
15	21	MAPG0021E	106	48	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0021E	113	51	CAB-12AP3	24.0 x 12.5 x 23.0	610 x 318 x 584
25	27	MAPG0027E	115	52	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0027E	123	56	CAB-12AP3	24.0 x 12.5 x 23.0	610 x 318 x 584
30	34	MAPG0034E	124	56	CAB-12AP2	24.0 x 12.5 x 17.9	610 x 318 x 455	MAPW0034E	131	59	CAB-12AP3	24.0 x 12.5 x 23.0	610 x 318 x 584
40	44	MAPG0044E	192	87	CAB-17AP2	33.9 x 18.3 x 20.9	861 x 465 x 531	MAPW0044E	199	90	CAB-17AP3	33.9 x 18.3 x 26.0	861 x 465 x 660
50	52	MAPG0052E	197	89	CAB-17AP2	33.9 x 18.3 x 20.9	861 x 465 x 531	MAPW0052E	204	93	CAB-17AP3	33.9 x 18.3 x 26.0	861 x 465 x 660
60	66	MAPG0066E	209	95	CAB-17AP2	33.9 x 18.3 x 20.9	861 x 465 x 531	MAPW0066E	217	98	CAB-17AP3	33.9 x 18.3 x 26.0	861 x 465 x 660
75	83	MAPG0083E	218	99	CAB-17AP2	33.9 x 18.3 x 20.9	861 x 465 x 531	MAPW0083E	226	103	CAB-17AP3	33.9 x 18.3 x 26.0	861 x 465 x 660
100	103	MAPG0103E	372	169	CAB-26AP2	51.3 x 27.7 x 24.9	1303 x 704 x 632	MAPW0103E	385	175	CAB-26AP3	51.3 x 27.7 x 30.0	1303 x 704 x 762
125	128	MAPG0125E	436	198	CAB-26AP2	51.3 x 27.7 x 24.9	1303 x 704 x 632	MAPW0125E	449	204	CAB-26AP3	51.3 x 27.7 x 30.0	1303 x 704 x 762
150	165	MAPG0165E	456	207	CAB-26AP2	51.3 x 27.7 x 24.9	1303 x 704 x 632	MAPW0125E	469	213	CAB-26AP3	51.3 x 27.7 x 30.0	1303 x 704 x 762
200	208	MAPG0208E	482	219	CAB-26AP2	51.3 x 27.7 x 24.9	1303 x 704 x 632	MAPW0208E	516	234	CAB-26AP3	51.3 x 27.7 x 30.0	1303 x 704 x 762
250	240	MAPG0240E	661	300	CAB-26APD2	76.0 x 27.7 x 24.9	1930 x 704 x 632	MAPW0240E	687	312	CAB-26APD3	76.0 x 27.7 x 34.0	1930 x 704 x 864
300	320	MAPG0320E	740	336	CAB-26APD2	76.0 x 27.7 x 24.9	1930 x 704 x 632	MAPW0320E	765	347	CAB-26APD3	76.0 x 27.7 x 34.0	1930 x 704 x 864
400	403	MAPG0403E	909	412	CAB-42AP2	87.6 x 43.7 x 31.1	2225 x 1110 x 790	MAPW0403E	945	429	CAB-42AP3	87.6 x 43.7 x 40.1	2225 x 1110 x 1019
500	482	MAPG0482E	1,091	495	CAB-42AP2	87.6 x 43.7 x 31.1	2225 x 1110 x 790	MAPW0482E	1,136	515	CAB-42AP3	87.6 x 43.7 x 40.1	2225 x 1110 x 1019
600	636	MAPG0636E	1,227	557	CAB-42AP2	87.6 x 43.7 x 31.1	2225 x 1110 x 790	MAPW0636E	1,264	573	CAB-42AP3	87.6 x 43.7 x 40.1	2225 x 1110 x 1019
800	786	MAPG0786E	1,509	684	CAB-48AP2	84.0 x 52.0 x 36.5	2134 x 1321 x 927	MAPW0786E	1,549	703	CAB-48AP3	84.0 x 52.0 x 45.5	2134 x 1321 x 1156

Amps Rating: 690V, 50Hz Open Panel

Drawings can be accessed by clicking on the part number

Motor KW	Filter Amps Rating	Part Number	Weight		Filter Dimensions (H x W x D)		Watts Loss	Capacitor/Capacitor Panel Assembly Dimensions (H x W x D)
			Lbs	Kgs	Inches	Millimeters		Inches	Millimeters
37	52	MAPP0052F	191	87	19.8 x 15.3 x 11.1	503 x 389 x 282	681	6.7 x 16.4 x 7.6	170 x 417 x 193
45	66	MAPP0066F	193	88	19.9 x 15.3 x 11.2	505 x 389 x 284	844	7.7 x 16.4 x 7.6	196 x 417 x 193
55	83	MAPP0083F	254	115	19.9 x 15.3 x 11.6	505 x 389 x 295	850	6.7 x 16.4 x 7.6	170 x 417 x 193
75	103	MAPP0103F	242	110	20.1 x 15.3 x 11.7	511 x 389 x 297	1,051	9.2 x 16.4 x 7.6	234 x 417 x 193
90	128	MAPP0128F	323	147	19.9 x 15.3 x 12.7	505 x 389 x 323	1,106	8.0 x 16.4 x 7.6	203 x 417 x 193
110	165	MAPP0165F	378	171	19.9 x 15.3 x 14.8	505 x 389 x 376	1,257	10.7 x 16.3 x 7.6	272 x 414 x 193
150	208	MAPP0208F	448	203	23.1 x 15.3 x 13.7	587 x 389 x 348	1,400	6.7 x 16.4 x 7.6 7.7 x 16.4 x 7.6	170 x 417 x 193 196 x 417 x 193
185	240	MAPP0240F	503	228	23.2 x 15.3 x 14.9	589 x 389 x 378	1,721	7.7 x 16.4 x 7.6 8.0 x 16.4 x 7.6	196 x 417 x 193 203 x 417 x 193
222	320	MAPP0320F	627	284	25.9 x 24.0 x 16.7	658 x 610 x 424	2,031	(2) 9.9 x 16.4 x 7.6	(2) 251 x 417 x 193
280	403	MAPP0403F	982	445	25.8 x 24.0 x 17.8	655 x 610 x 452	2,780	6.7 x 16.4 x 7.6 (2) 9.9 x 16.4 x 7.6	170 x 417 x 193 (2) 251 x 417 x 193
375	482	MAPP0482F	1,167	529	25.9 x 24.0 x 19.0	658 x 610 x 483	2,883	(3) 9.9 x 16.4 x 7.6	(3) 251 x 417 x 193
450	636	MAPP0636F	1,084	492	25.9 x 24.0 x 21.6	658 x 610 x 549	3,140	(3) 11.1 x 16.4 x 7.6	(3) 282 x 417 x 193
