MTE is a Yaskawa Product Partner
Yaskawa’s U1000 Industrial Matrix drive is an all-in-one solution for ultra-low harmonics. MTE’s compliment of motor protection solutions on the output side of the drive make this a match made in heaven.
For motor protection, there is nothing better.
MTE Corporation has partnered with Yaskawa America to offer a complete line of motor protection solutions that are compatible with the Yaskawa U1000 Industrial MATRIX drive. MTE’s RL/RLW reactors, dV Sentry® dv/dt filters, and SineWave Guardian® sinewave filters have been fully tested and approved by Yaskawa.
RL/RLW Reactors reduce reflective wave, motor peak terminal voltage, motor temperature, and audible noise for enhancement of motor performance and system efficiency. MTE reactors are great low-cost insurance to help keep the system running.

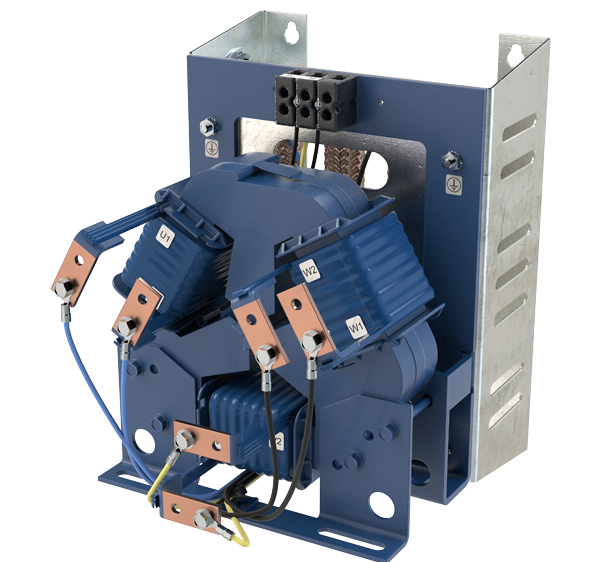

dV Sentry® filters not only eliminate peak voltages and reflective wave that can damage cable and motor insulation, but they also help protect motor bearings from damage by reducing common mode. The dV Sentry® is a 3-in-1 protection solution to help increase uptime and reduce maintenance costs.

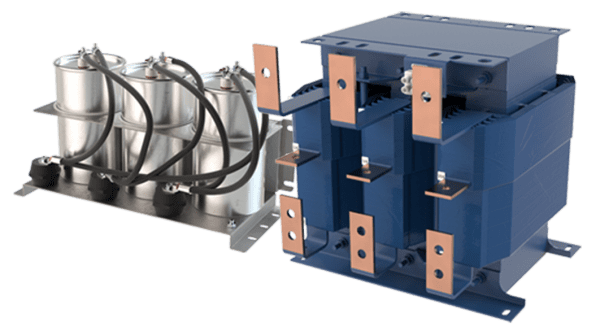

The SineWave Guardian® delivers unequaled performance in cleaning the PWM waveforms generated by Variable Frequency Drives (VFDs). It virtually eliminates high frequency content and voltage peaks, thereby reducing motor heating to give extended motor life and less downtime. The SineWave Guardian® also offers incredible reliability and durability. The Guardian’s higher efficiency and max temperature tolerance makes it ideal for a variety of applications from steel mills to oil fields. It all adds up to the best SineWave Filter, and the best value on the market today.
U1000 MATRIX Drive and MTE Motor Protection Solution Compatibility Index
*MTE part numbers shown are modular units only. NEMA 1/2 and NEMA 3R configurations also available. Contact MTE for more information.
| Yaskawa U1000 Industral Matrix Drive Part Number | Rated Output Current | Nominal HP | Compatible MTE RLW Reactor Part Number | Compatible MTE dV Sentry Part Number | Compatible MTE SineWave Guardian Part Number |
| CIMR-UU4A0011AUA | 11 | 7.5 | RLW-001401 | DVSP0012E | SWGM0012D |
| CIMR-UU4A0014AUA | 14 | 10 | RLW-002101 | DVSP0017E | SWGM0017D |
| CIMR-UU4A0021AUA | 21 | 15 | RLW-002801 | DVSP0022E | SWGM0022D |
| CIMR-UU4A0027AUA | 27 | 20 | RLW-003501 | DVSP0027E | SWGM0027D |
| CIMR-UU4A0034AUA | 34 | 25 | RLW-004601 | DVSP0035E | SWGM0035D |
| CIMR-UU4A0040AUA | 40 | 30 | RLW-005501 | DVSP0045E | SWGM0045D |
| CIMR-UU4A0052AUA | 52 | 40 | RLW-006501 | DVSP0055E | SWGM0055D |
| CIMR-UU4A0065AUA | 65 | 50 | RLW-008301 | DVSP0065E | SWGM0065D |
| CIMR-UU4A0077AUA | 77 | 60 | RLW-010401 | DVSP0080E | SWGM0080D |
| CIMR-UU4A0096AUA | 96 | 75 | RLW-013001 | DVSP0110E | SWGM0110D |
| CIMR-UU4A0124AUA | 124 | 100 | RLW-016001 | DVSP0130E | SWGM0130D |
| CIMR-UU4A0156AUA | 156 | 125 | RLW-020001 | DVSP0160E | SWGM0160D |
| CIMR-UU4A0180AUA | 180 | 150 | RLW-025001 | DVSP0200E | SWGM0200D |
| CIMR-UU4A0216AUA | 216 | 175 | RLW-032201 | DVSP0250E | SWGM0250D |
| CIMR-UU4A0240AUA | 240 | 200 | RLW-032201 | DVSP0250E | SWGM0250D |
| CIMR-UU4A0302AUA | 302 | 250 | RLW-041401 | DVSP0305E | SWGM0305D |
| CIMR-UU4A0361AUA | 361 | 300 | RLW-051501 | DVSP0415E | SWGM0365D |
| CIMR-UU4A0414AUA | 414 | 350 | RLW-060001 | DVSP0415E | SWGM0415D |
| CIMR-UU4A0477AUB | 477 | 400 | RLW-060001 | DVSP0515E | SWGM0515D |
| CIMR-UU4A0590AUB | 590 | 500 | RLW-075001 | DVSP0600E | SWGM0600D |
| CIMR-UU4A0720AUB | 720 | 600 | Contact MTE | Contact MTE | SWGM0720D |
| CIMR-UU4A0930AUB | 930 | 800 | Contact MTE | Contact MTE | SWGM1000D |
