Power Quality for Oil and Gas Operations
Advanced Protection for High THVD Environments

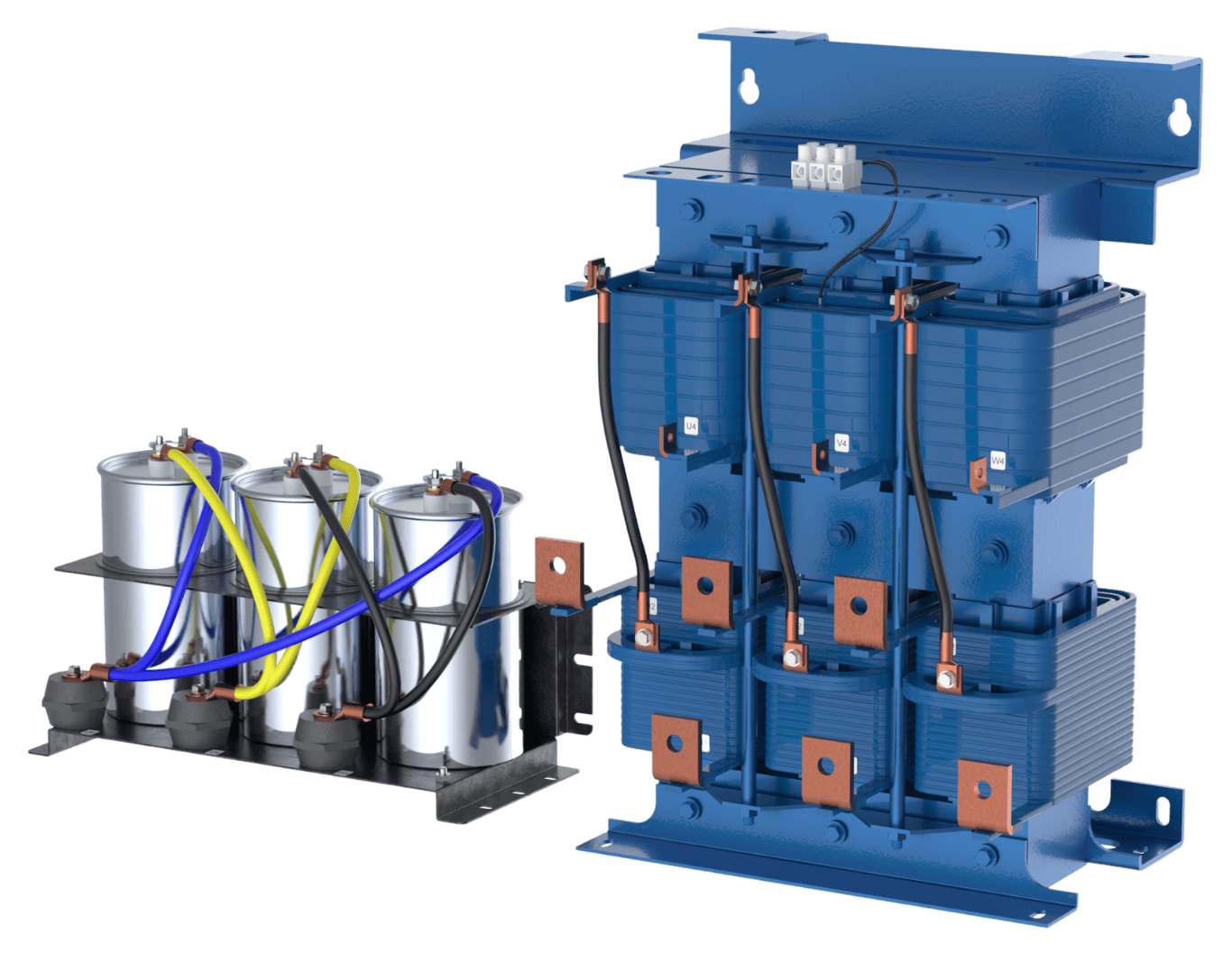

Matrix® AP+ is built for rugged electrical environments where high THVD (up to 15%) threatens uptime, efficiency, and critical equipment.
Power Quality for Oil and Gas Operations
Advanced Protection for High THVD Environments
Matrix® AP+ is built for rugged electrical environments where high THVD (up to 15%) threatens uptime, efficiency, and critical equipment.
Why Matrix AP+
Built for High THVD
Designed for Demanding Industrial Applications
Helps prevent unplanned downtime due to harmonic distortion, nuisance tripping, overheating and electrical instability.
Resilient Harmonic Protection
Engineered to endure high THVD and fluctuating power.
Self-protecting Solution
Integrated THVD overload protection with auto reset safeguards the system.
Patented Adaptive Passive Technology
Ensures superior harmonic mitigation and THID performance over a wide load range.The Matrix® AP+ Advantage
Performance Snapshot

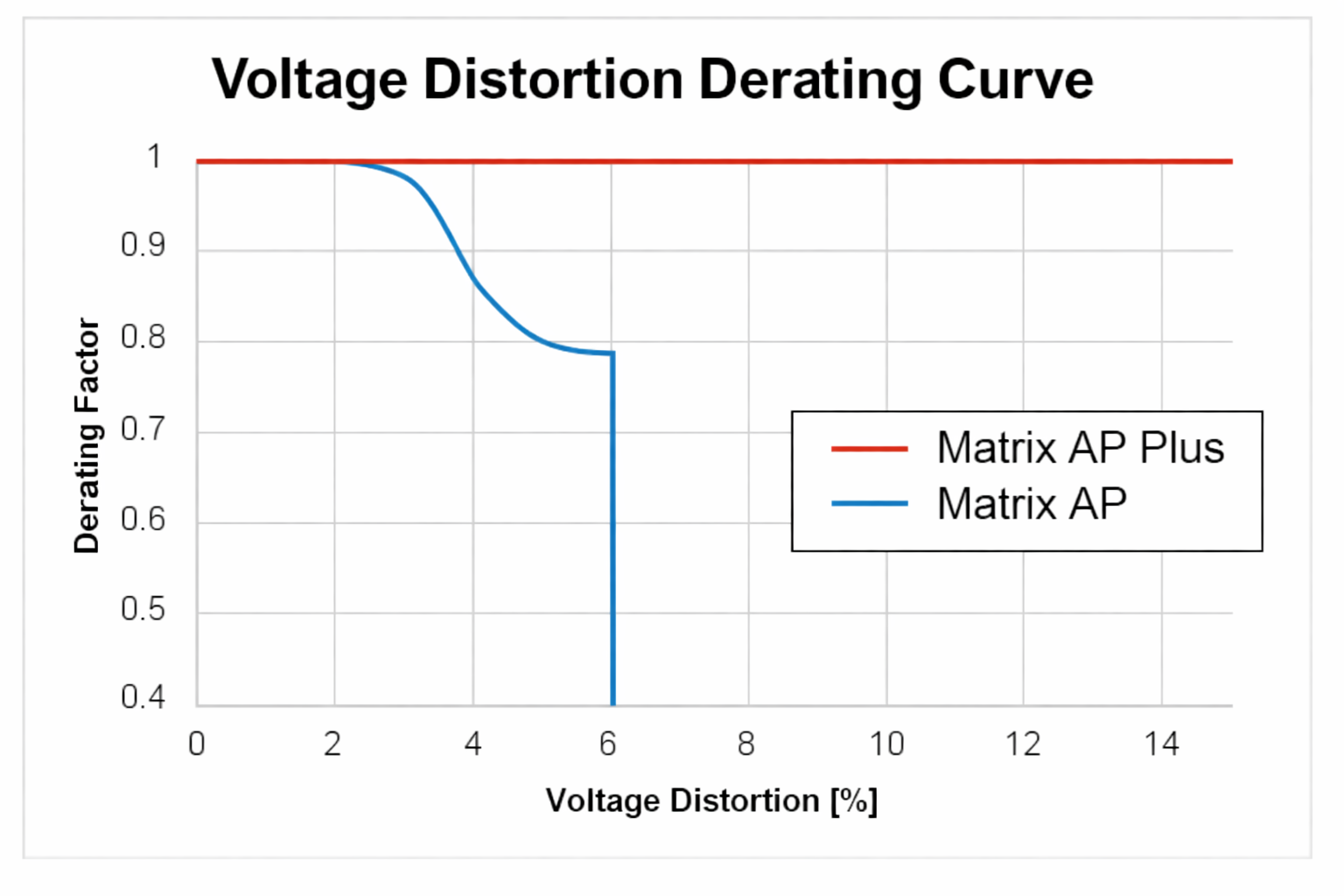

Matrix® AP+ Extends Performance for High-THVD Applications
Enables full-capacity system operation in high-THVD environments.
Minimizes performance loss caused by increase voltage distortion.
Helps maintain reliable performance in fluctuating electrical environments.
Search Matrix AP+ Models:
| wdt_ID | wdt_last_edited_by | wdt_last_edited_at | kHz | 480V HP | Part # | AMPS | Voltage | System Frequency | Panel Configuration | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|
| 91 | 10 | MV1W0208D002 | 208 A | 480V | 60 Hz | NEMA 3R | ||||
| 92 | 15 | MV1W0320D002 | 320 A | 480V | 60 Hz | NEMA 3R | ||||
| 93 | 20 | MV1W0403D002 | 403 A | 480V | 60 Hz | NEMA 3R | ||||
| 94 | 25 | MV1W0482D002 | 482 A | 480V | 60 Hz | NEMA 3R | ||||
| 95 | 30 | MV1W0636D002 | 636 A | 480V | 60 Hz | NEMA 3R | ||||
| 96 | 40 | MV1W0786D002 | 786 A | 480V | 60 Hz | NEMA 3R | ||||
| 97 | 50 | MV1W1000D002 | 1000 A | 480V | 60 Hz | NEMA 3R | ||||
| 98 | 60 | MV1W0403D009 | 403 A | 480V | 60 Hz | NEMA 3R | ||||
| 99 | 75 | MV1W0482D009 | 482 A | 480V | 60 Hz | NEMA 3R | ||||
| 100 | MV1W0636D009 | 636 A | 480V | 60 Hz | NEMA 3R |
Matrix AP+ Literature

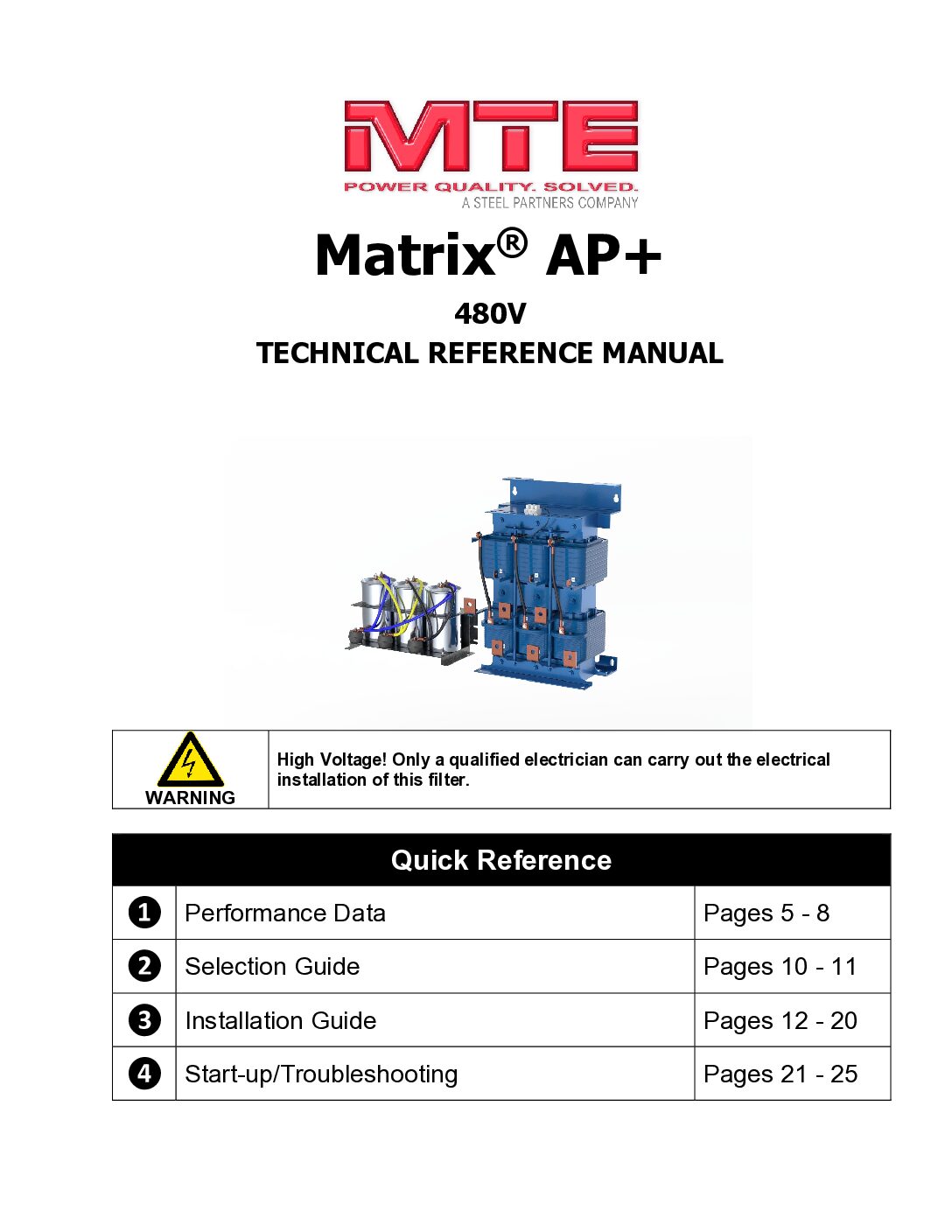

Technical Reference Manual
Quick-Find Product Selector
Locate product selections, brochures, and drawings easily.
