Reactor

We offer a family of reactors that enhance productivity by reducing nuisance tripping, lowering harmonic distortion and minimizing long lead effects.

Solutions Catalog

RL Line and Load Reactors

Peace of mind included.

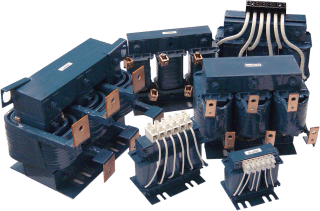

Our RL Line/Load Reactors are best-in class power quality units with a long history of proven performance for lowering harmonics caused by variable frequency drives (VFDs). Rugged and robust, they are unequalled in absorbing power line disturbances that can damage or shut down variable frequency drives (VFDs) and other sensitive equipment. They work on both the line (input) side and load (output) side to give you an easy solution that reduces nuisance tripping, reduces harmonic distortion and minimizes long lead effects.

Line/Load Selection Table – 1/.75-10/7.5 HP/kw

208-690 Volts, 50/60 hz (Open Type)

Ratings	HP/kw	1/.75	1.5/1.1	2/1.5	3/2.2	5/3.7	7.5/5.5	10/7.5
208 Volts 50/60 HZ	3% Impedance	RL-00801	RL-00801	RL-00801	RL-01801	RL-02501	RL-03501	RL-05501
208 Volts 50/60 HZ	5% Impedance	RL-00802	RL-00802	RL-01202	RL-01802	RL-02502	RL-03502	RL-05502
240 Volts 50/60 HZ	3% Impedance	RL-00802	RL-00801	RL-00801	RL-01201	RL-01801	RL-02501	RL-03501
240 Volts 50/60 HZ	5% Impedance	RL-00803	RL-00802	RL-00802	RL-01202	RL-02502	RL-03502	RL-03502
400 Volts 50/60 HZ	3% Impedance	RL-00403	RL-00402	RL-00402	RL-00803	RL-00802	RL-01202	RL-01802
400 Volts 50/60 HZ	5% Impedance	RL-00202	RL-00404	RL-00403	RL-00804	RL-00803	RL-01203	RL-01803
480 Volts 50/60 HZ	3% Impedance	RL-00201	RL-00402	RL-00402	RL-00803	RL-00802	RL-01202	RL-01802
480 Volts 50/60 HZ	5% Impedance	RL-00202	RL-00404	RL-00403	RL-00804	RL-00803	RL-01203	RL-01803
600 Volts 50/60 HZ	3% Impedance	RL-00202	RL-00202	RL-00403	RL-00402	RL-00803	RL-01202	RL-01202
600 Volts 50/60 HZ	5% Impedance	RL-00203	RL-00202	RL-00404	RL-00404	RL-00804	RL-01203	RL-01203
690 Volts 50/60 HZ	2% Impedance	Consult Factory	Consult Factory	Consult Factory	RL-00403	RL-00402	RL-00801	RL-01202
690 Volts 50/60 HZ	3% Impedance	Consult Factory	Consult Factory	Consult Factory	RL-00402	RL-00404	RL-00804	RL-01203

A CAD drawing in web image format is available by clicking on the part number.

Line/Load Selection Table – 15/11-100/75 HP/kw

208-690 Volts, 50/60 hz (Open Type)

Ratings	HP/kw	15/11	20/15	25/18.5	30/22	40/30	50/37.5	60/45	75/55	100/75
208 Volts 50/60 HZ	3% Impedance	RL- 05501	RL- 08001	RL- 10001	RL- 10001	RL- 13001	RL- 16001	RL- 20001B14	RL- 25001B14	RL- 32001B14
208 Volts 50/60 HZ	5% Impedance	RL- 04501	RL- 05501	RL- 08001	RL- 13002	RL- 16002	RL- 20002B14	RL- 20002B14	RL- 25002B14	RL- 32002B14
240 Volts 50/60 HZ	3% Impedance	RL- 04501	RL- 05501	RL- 08001	RL- 10001	RL- 13001	RL- 13001	RL- 16001	RL- 20001B14	RL- 25001B14
240 Volts 50/60 HZ	5% Impedance	RL- 05502	RL- 08002	RL- 10001	RL- 08001	RL- 13002	RL- 16002	RL- 16002	RL- 20002B14	RL- 25002B14
400 Volts 50/60 HZ	3% Impedance	RL- 02502	RL- 03502	RL- 04502	RL- 04502	RL- 08002	RL- 08002	RL- 10002	RL- 13002	RL- 16002
400 Volts 50/60 HZ	5% Impedance	RL- 02503	RL- 03503	RL- 04503	RL- 05503	RL- 08003	RL- 10003	RL- 10003	RL- 13003	RL- 16003
480 Volts 50/60 HZ	3% Impedance	RL- 02502	RL- 03502	RL- 03502	RL- 04502	RL- 05502	RL- 08002	RL- 10002	RL- 10002	RL- 13002
480 Volts 50/60 HZ	5% Impedance	RL- 02503	RL- 03503	RL- 03503	RL- 05503	RL- 05503	RL- 08003	RL- 10003	RL- 10003	RL- 13003
600 Volts 50/60 HZ	3% Impedance	RL- 01802	RL- 02502	RL- 02502	RL- 03502	RL- 04502	RL- 05502	RL- 08002	RL- 08002	RL- 10002
600 Volts 50/60 HZ	5% Impedance	RL- 01803	RL- 02503	RL- 02503	RL- 03503	RL- 04503	RL- 05503	RL- 08003	RL- 08003	RL- 10003
690 Volts 50/60 HZ	2% Impedance	RL- 01202	RL- 01802	RL- 02502	RL- 02502	RL- 03502	RL- 04502	RL- 05502	RL- 05502	RL- 08002
690 Volts 50/60 HZ	3% Impedance	RL- 01203	RL- 01803	RL- 02503	RL- 02503	RL- 03503	RL- 04503	RL- 04502	RL- 05503	RL- 08003

A CAD drawing in web image format is available by clicking on the part number.

Line/Load Selection Table – 125/93 750/550 HP/kw

208-690 Volts, 50/60 hz (Open Type)

Ratings	HP/kw	125/93	150/112	200/150	250/187	300/225	350/262	400/300	500/375	600/450	700/550
208 Volts 50/60 HZ	3% Impedance	RL- 40001B14	RL- 50001B14	RL- 60001	RL- 75001	RL- 85001B14	RL- 100001B14	RL- 120001B14	RL- 140001	Consult Factory	Consult Factory
208 Volts 50/60 HZ	5% Impedance	RL- 40002B14	RL- 50002	RL- 75002	RL- 75002	RL- 90002B14	RL- 100002B14	RL- 120002B14	RL- 150002	Consult Factory	Consult Factory
240 Volts 50/60 HZ	3% Impedance	RL- 32001B14	RL- 40001B14	RL- 50001B14	RL- 60001	RL- 75001	RL- 85001B14	RL- 100001B14	RL- 120001B14	Consult Factory	Consult Factory
240 Volts 50/60 HZ	5% Impedance	RL- 40002B14	RL- 40002B14	RL- 60002	RL- 75002	RL- 75002	RL- 85002B14	RL- 100002B14	RL- 140002	Consult Factory	Consult Factory
400 Volts 50/60 HZ	3% Impedance	RL- 20002B14	RL- 20002B14	RL- 32002B14	RL- 40002B14	RL- 40002B14	RL- 50002	RL- 60002	RL- 75002	RL- 85002B14	RL- 90002B14
400 Volts 50/60 HZ	5% Impedance	RL- 20003B14	RL- 20003B14	RL- 32003B14	RL- 40003B14	RL- 40003B14	RL- 50003	RL- 60003	RL- 75003	RL- 85003B14	RL- 90003B14
480 Volts 50/60 HZ	3% Impedance	RL- 16002	RL- 20002B14	RL- 25002B14	RL- 32002B14	RL- 40002B14	RL- 50002	RL- 50002	RL- 60002	RL- 75002	RL- 85002B14
480 Volts 50/60 HZ	5% Impedance	RL- 16003	RL- 20003B14	RL- 25003B14	RL- 32003B14	RL- 40003B14	RL- 50003	RL- 50003	RL- 60003	RL- 75003	RL- 85003B14
600 Volts 50/60 HZ	3% Impedance	RL- 13002	RL- 16002	RL- 20002B14	RL- 25002B14	RL- 32002B14	RL- 32002B14	RL- 40002B14	RL- 50002	RL- 60002	RL- 75002
600 Volts 50/60 HZ	5% Impedance	RL- 13003	RL- 16003	RL- 20003B14	RL- 25003B14	RL- 32003B14	RL- 32003B14	RL- 40003B14	RL- 50003	RL- 60003	RL- 75003
690 Volts 50/60 HZ	2% Impedance	RL- 10002	RL- 13002	RL- 16002	RL- 20002B14	RL- 25002B14	RL- 25002B14	RL- 32002B14	RL- 40002B14	RL- 40002B14	RL- 50002
690 Volts 50/60 HZ	3% Impedance	RL- 10003	RL- 13003	RL- 16003	RL- 20003B14	RL- 25003B14	RL- 25003B14	RL- 32003B14	RL- 40003B14	RL- 50003	RL- 50003
