Harmonic Filters
MTE offers an array of harmonic mitigation solutions, including the best THID reduction solution on the market with patented Adaptive Passive Technology, to increase productivity and system efficiency.
The Matrix® APAX Harmonic Filter
Power quality just got easier to achieve.

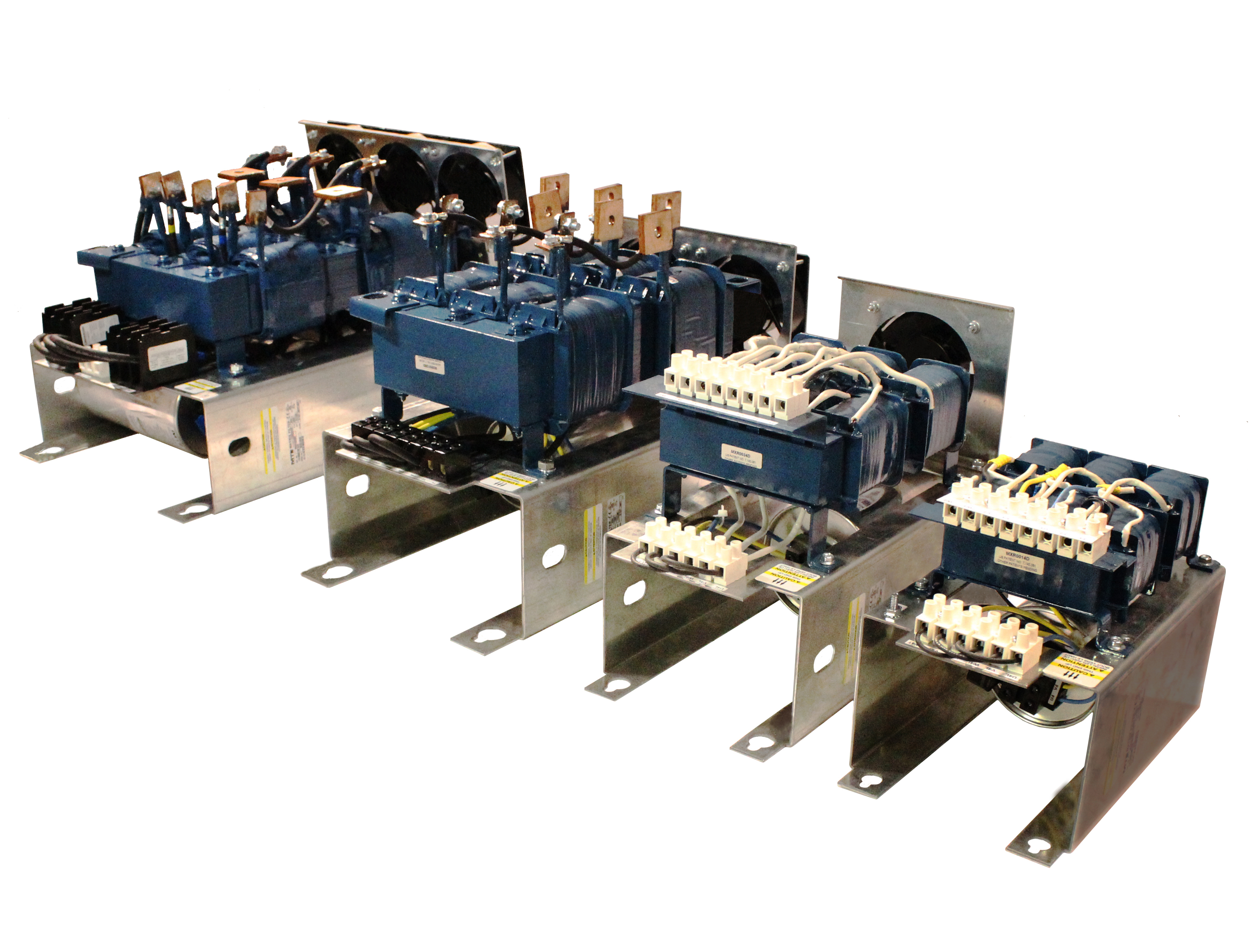

The patented Matrix® APAX is the convenient solution for meeting specific harmonic distortion requirements. Designed in the USA and built to meet MTE’s proven standards for quality, the Matrix APAX helps reduce harmonic distortions caused by Variable Frequency Drives [VFDs]. It features a one-panel design with fewer connections and optional contractor positions. This makes it easier to integrate and easier to install. With Matrix APAX Harmonic Filters, power quality, energy efficiency and reduced downtime are easy to afford.
Related Links:
Product Brochure
Solutions Catalog
Filter Specs
Installation Guide
Technical Manual
- Compact passive harmonic filter
- Meets 10%-15% harmonic distortion requirements
- Over temperature switch included
- Easy to integrate and install
- Designed in the USA
Amps Rating: 380V-415V,50Hz Open Panel
Drawings can be accessed by clicking on the part number. NOTE: Also available in 380V,60Hz. Contact MTE for details.
Motor KW | Filter Amps Rating | Part Number | Weight | Filter Dimensions (H x W x D) | Watts Loss |
||
| Lbs | Kgs | Inches | Millimeters | ||||
| 1.1-2.2 | 6 | MXP0006C | 20 | 9 | 12.6 X 7.4 X 8.9 | 320 x 188 x 226 | 65 |
| - | 8 | MXP0008C | 24 | 11 | 12.6 X 7.4 X 8.9 | 320 x 188 x 226 | 74 |
| 3.7 | 11 | MXP0011C | 30 | 14 | 12.6 X 7.4 X 9.1 | 320 x 188 x 231 | 94 |
| 5.5 | 14 | MXP0014C | 33 | 15 | 12.6 X 7.4 X 9.3 | 320 x 188 x 236 | 106 |
| 7.5 | 21 | MXP0021C | 39 | 18 | 17.4 X 7.6 X 11.4 | 442 x 193 x 290 | 192 |
| 11 | 27 | MXP0027C | 43 | 20 | 17.4 X 7.6 X 11.4 | 442 x 193 x 290 | 212 |
| 15 | 34 | MXP0034C | 47 | 21 | 17.4 X 7.6 X 11.4 | 442 x 193 x 290 | 205 |
| 18.5-22 | 44 | MXP0044C | 53 | 24 | 17.4 X 7.6 X 11.4 | 442 x 193 x 290 | 270 |
| - | 52 | MXP0052C | 73 | 33 | 20.0 X 10.6 X 12.5 | 508 x 269 x 318 | 278 |
| 30 | 66 | MXP0066C | 78 | 35 | 20.0 X 10.6 X 12.2 | 508 x 269 x 310 | 359 |
| 37-45 | 83 | MXP0083C | 92 | 42 | 20.0 X 10.6 X 13.1 | 508 x 269 x 333 | 378 |
| 55 | 103 | MXP0103C | 104 | 47 | 20.0 X 10.6 X 13.8 | 508 x 269 x 351 | 397 |
| - | 128 | MXP0128C | 115 | 52 | 20.2 X 10.6 X 14.3 | 513 x 269 x 363 | 480 |
| 75-90 | 165 | MXP0165C | 145 | 66 | 25.5 X 14.8 X 14.3 | 648 x 376 x 363 | 668 |
| 110 | 208 | MXP0208C | 163 | 74 | 25.6 X 14.8 X 14.6 | 650 x 376 x 371 | 732 |
| - | 240 | MXP0240C | 193 | 88 | 25.6 X 14.8 X 15.7 | 650 x 376 x 399 | 768 |
| 150 | 320 | MXP0320C | 209 | 95 | 25.8 X 14.8 X 15.6 | 655 x 376 x 396 | 929 |
